- Product name:Aluminum solar mounting ground pv module support racking / structure
- Place of Origin:CN;SHG
- Brand Name:CKIKO
- Model Number:solar mounting bracket for ground
- Wind Load:60M/S
- Snow Load:1.8KN/M2
- Warranty:10 Years
Ground

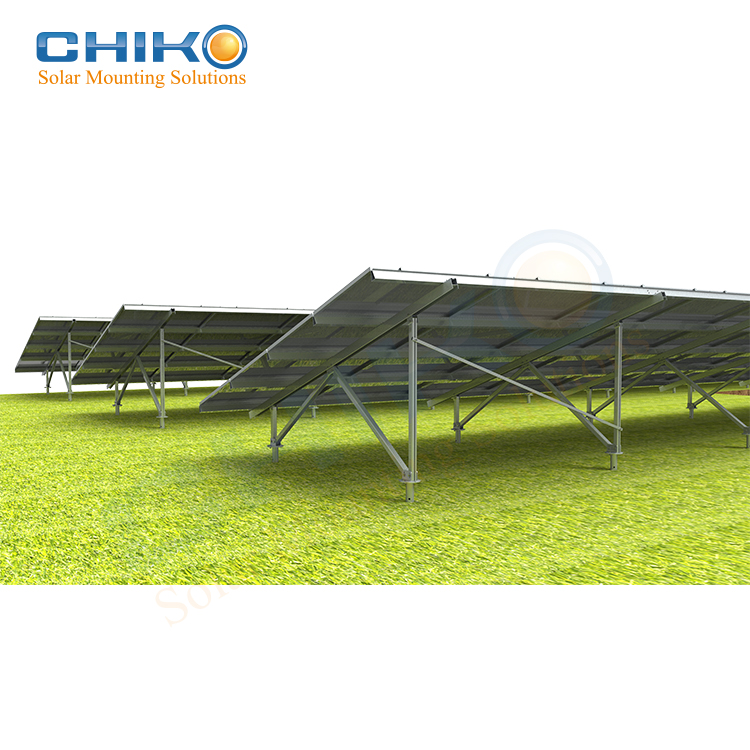

Ground ALU T2VC Solar Mounting

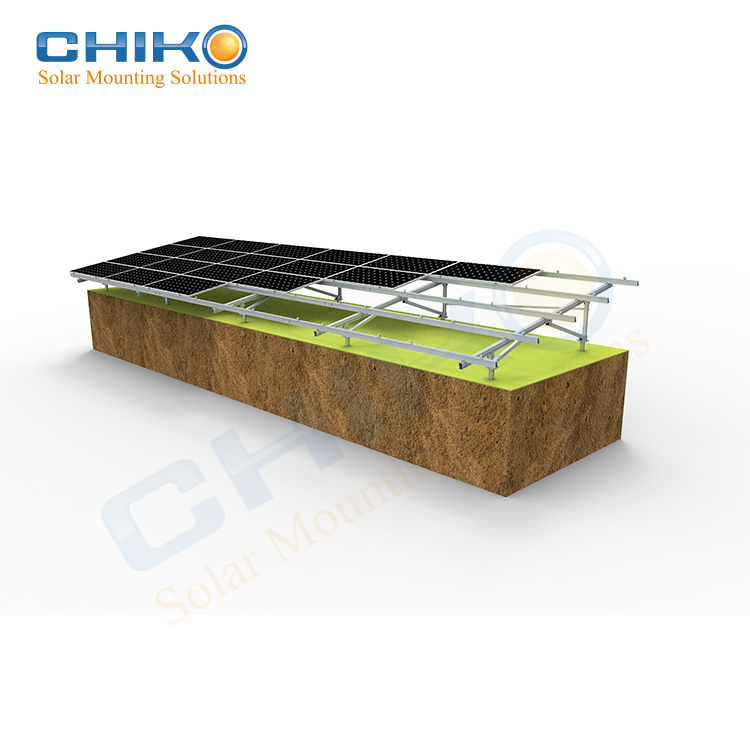

Chiko Alu T2VC Solar Mounting System made of anodized AL6005-T5, providing a lightweight solution for solar power plantconstruction.
All components have been pre-cut and pre-drilled for easy assembly in installation site, saving time and labor cost.
Can be used on Ground Plant, Carport, Agricultural and special requirement on flat roof.
Can be used on Ground Plant, Carport, Agricultural and special requirement on flat roof.

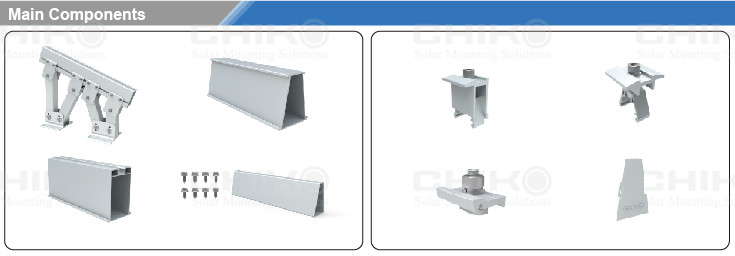

No. | Item No. | Descriptions | Quantity (2x8=16 Panels) | |||
1 | CK-FT-R33B1-4200 | CHIKO ALU Rail No.33-- 4200mm | 8 | |||
2 | CK-089-1-300 | CHIKO Rail Splice Kit For 33 Rail | 4 | |||
3 | CK-092RT4-40 | CHIKO TW Rail Fixed Side kits | 32 | |||
4 | CK-154R4F-(33-45)-40 | CHIKO 154 Mid Clamp 35-45mm For 4/43/33Rail | 28 | |||
5 | CK-146R4F-40-40 | Chiko 146 End Clamp 40mm for 4/43/33Rail | 8 | |||

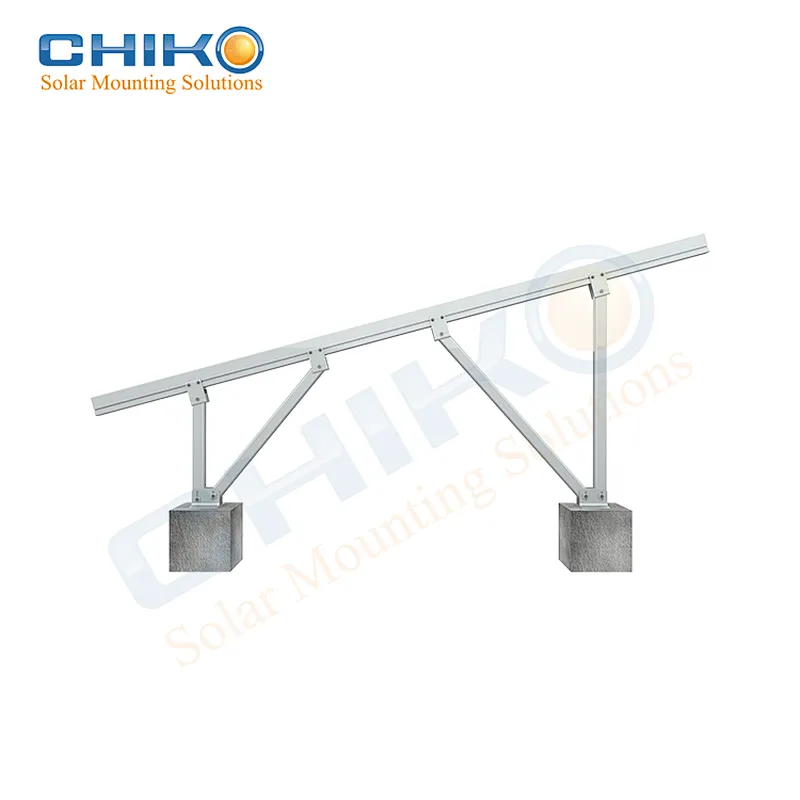

6 | CK-FT-T2VC-2P | CHIKO Alu Support structure,2 Panels Portrait | 4 | |||
7 | CK-228RT4-6-2550 | CHIKO I Strengthen Kit 2550mm | 4 | |||
8 | CK-JEB-12150 | CHIKO Expand bolt M12*150mm | 16 | |||
Quantity will be adjusted upon the spacing and arrays | ||||||
Advantages
• Easy installation
• Safety and reliability
• Cost saving
• Anti-corrosion and anti-rust
Technical Datas
• Installation site: Open field ground mount
• Foundation: Ground screw & Concrete
• Mount tilt angle: 0-45 Degree
• Main components: AL6005-T5
• Accessories: Stainless steel fastening
• Duration: More than 30 years

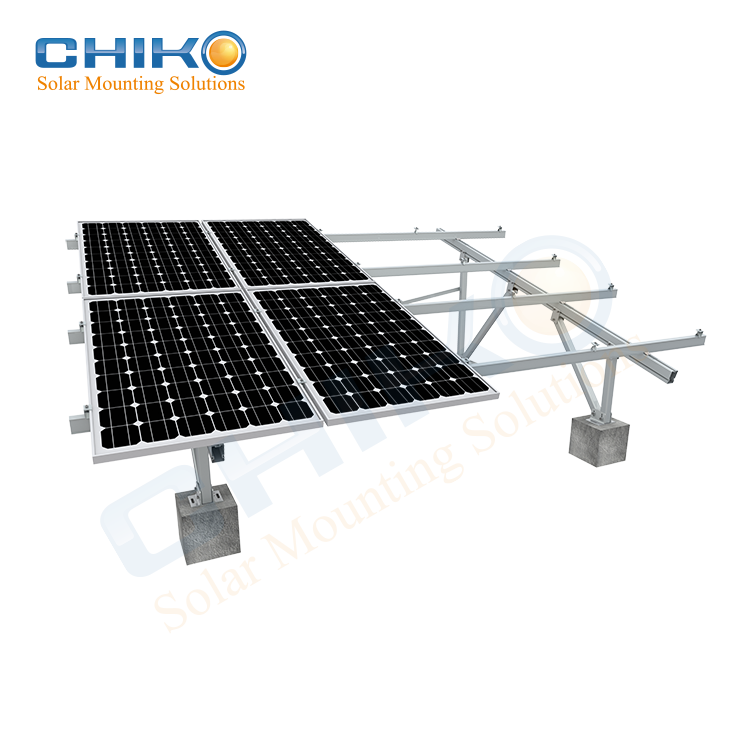

Two Foundation Types of T2VC Solar Mounting system

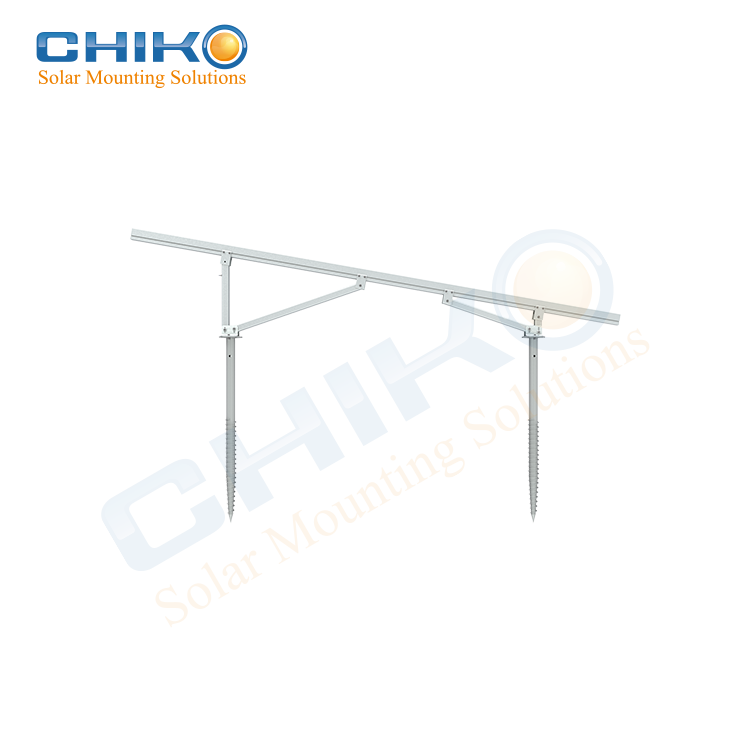

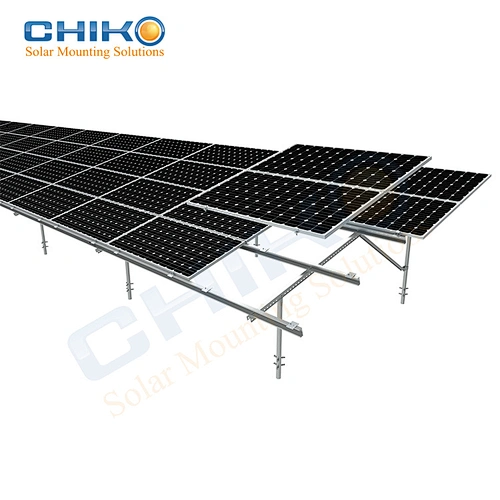

Screw Piles
• High traction and pressure values
• Installation by mini-digger machine with rotating head support

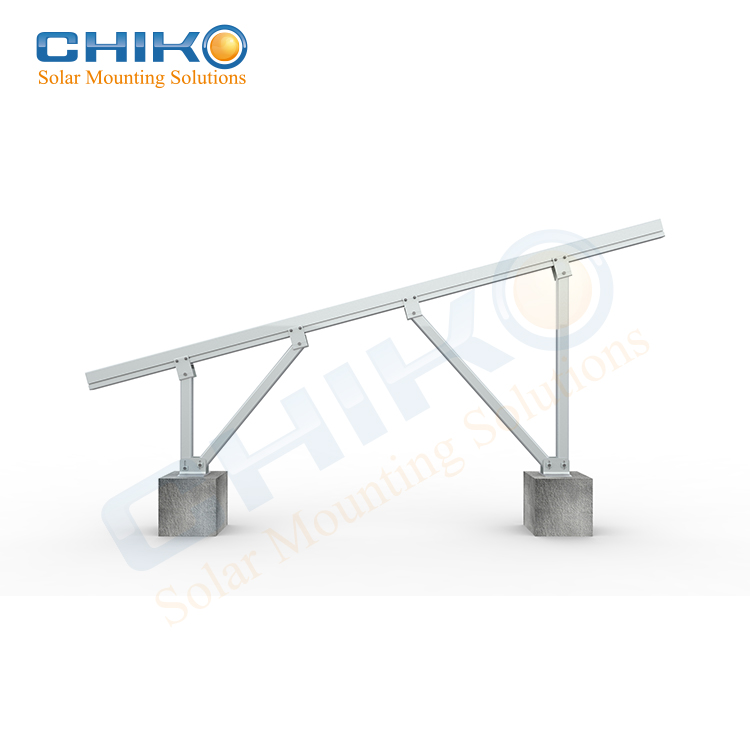

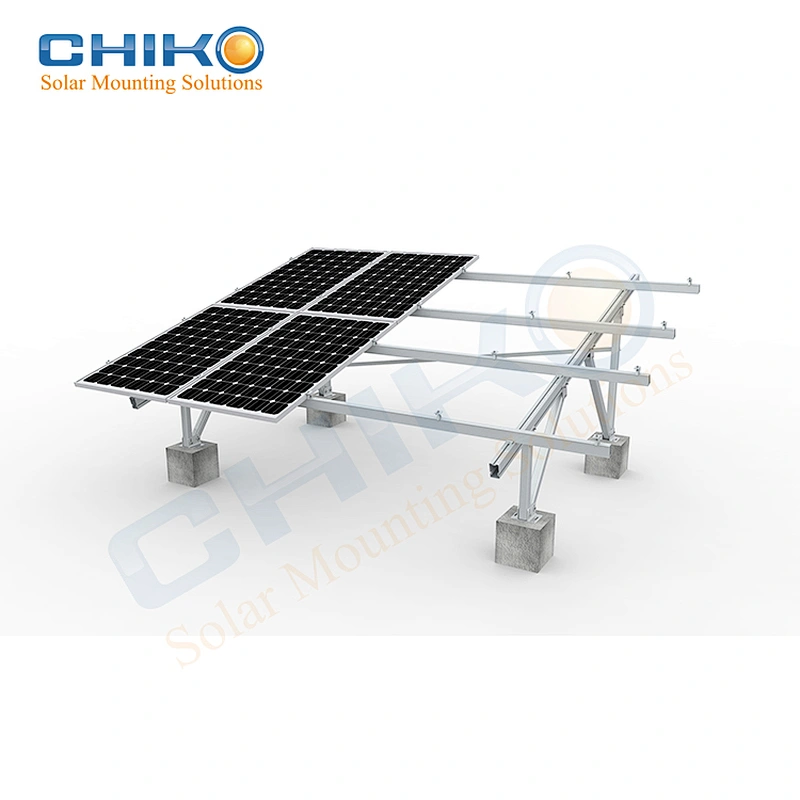

Concrete Base
• Best suited where ground excavation is not permitted
• The size is adjusted based on the static requirements and location.

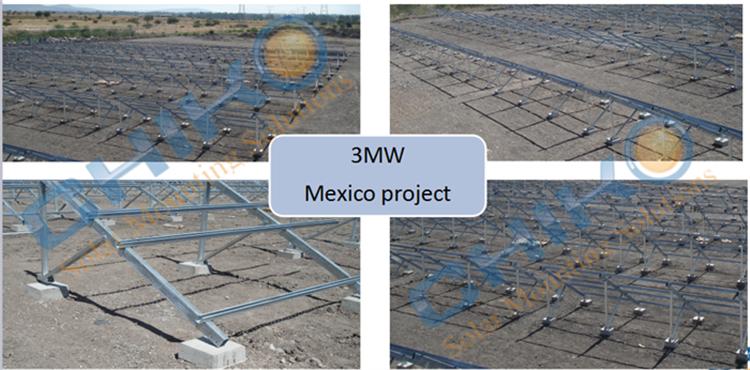

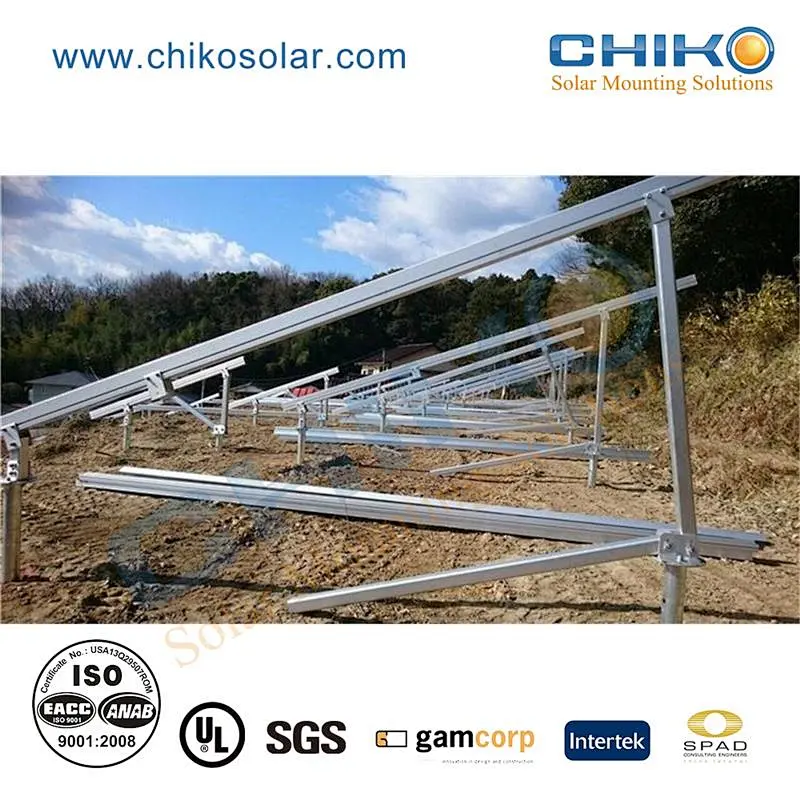

CHIKO PROJECT CASE
CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available. Anything further question and more solution, Contact us !
