CHIKO ALU Triangular Mount System

Model NO.: Alu Triangle Mount
Price:: USD 0.04-0.05 / watts
Minimum order quantity: 50000 watts
Supply Ability: 1000000.0 watts / Month
Country of Origin: SHANGHAI,CHINA

Quantity:

Product Description

Material:Aluminum Alloy.Stainless Steel
Color:Natural/black
Wind load:60M / S
Snow load:1.8KN / M2
Service Life:30 Years
Warranty:10YEARS
Free installation service:NO
Application:Home
Application:Commercial
Solar Panel Type:Monocrystalline Silicon
Solar Panel Type:Polycrystalline Silicon
Mounting Type:Roof Mounting
Pre-sales project design:Y
Place of Origin:CN
Brand Name:CHIKO
Model Number:Alu Triangle Mount
Certificate:CE/UL/ASNZS1170/intertek/SGS/MCS/Intertek/SPAD

Flat roof

CHIKO Solar Triangular Flat Roof Mounting

Provide a universal solution for multitude of different flat roof PV installations. The system is highly pre-assembled to minimal the cost on installation and max convenience on warehousing.

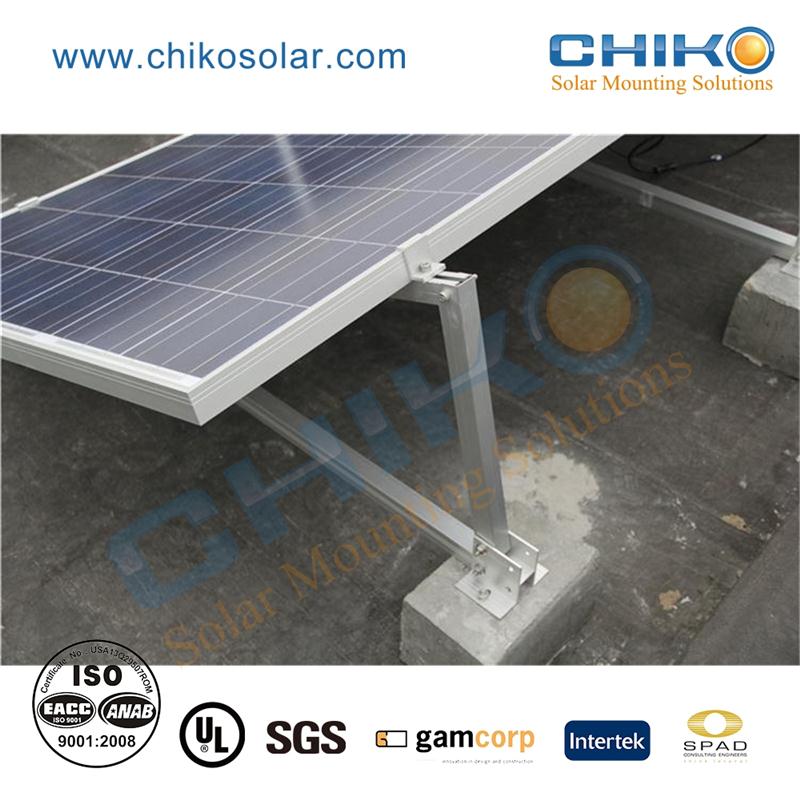

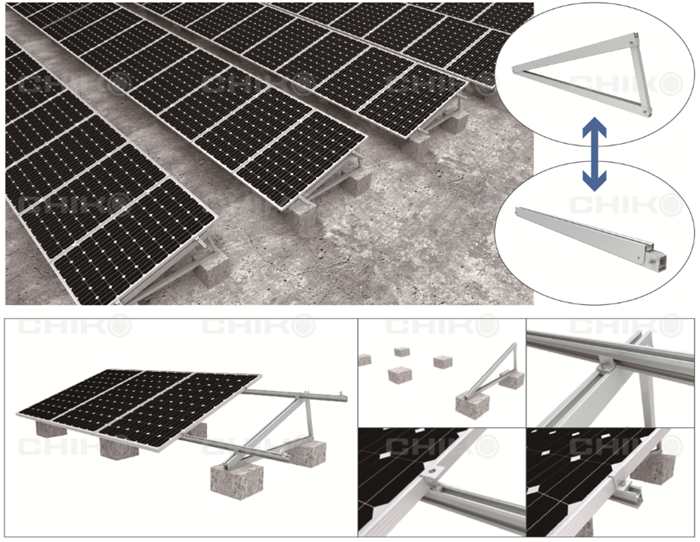

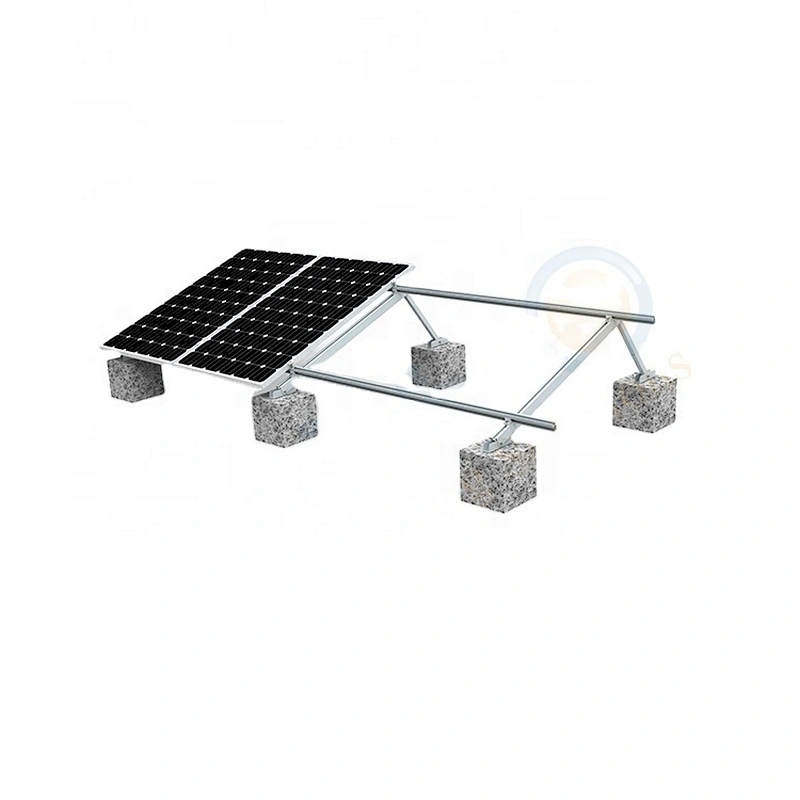

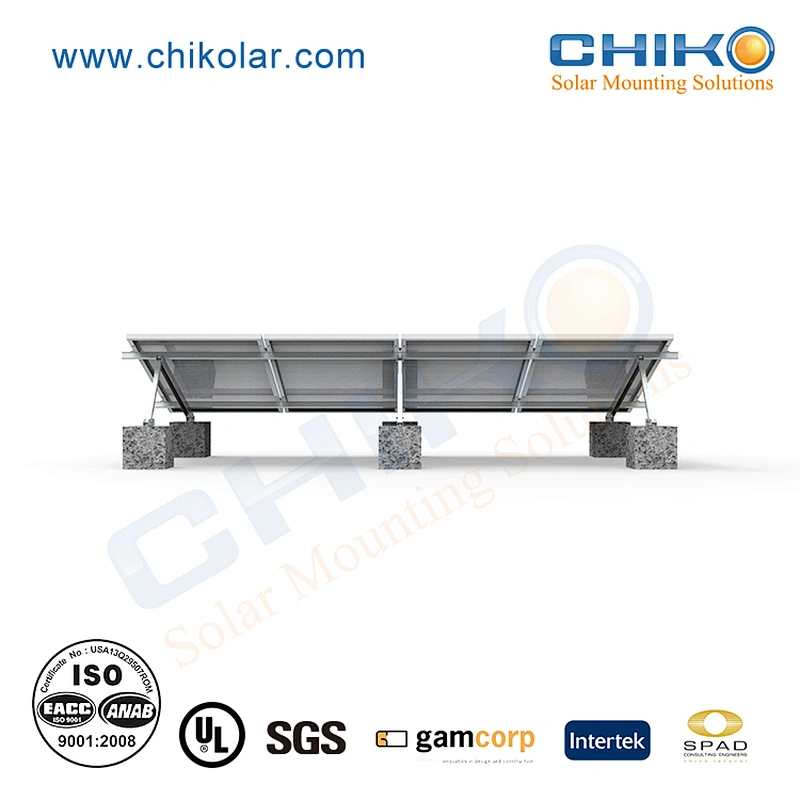

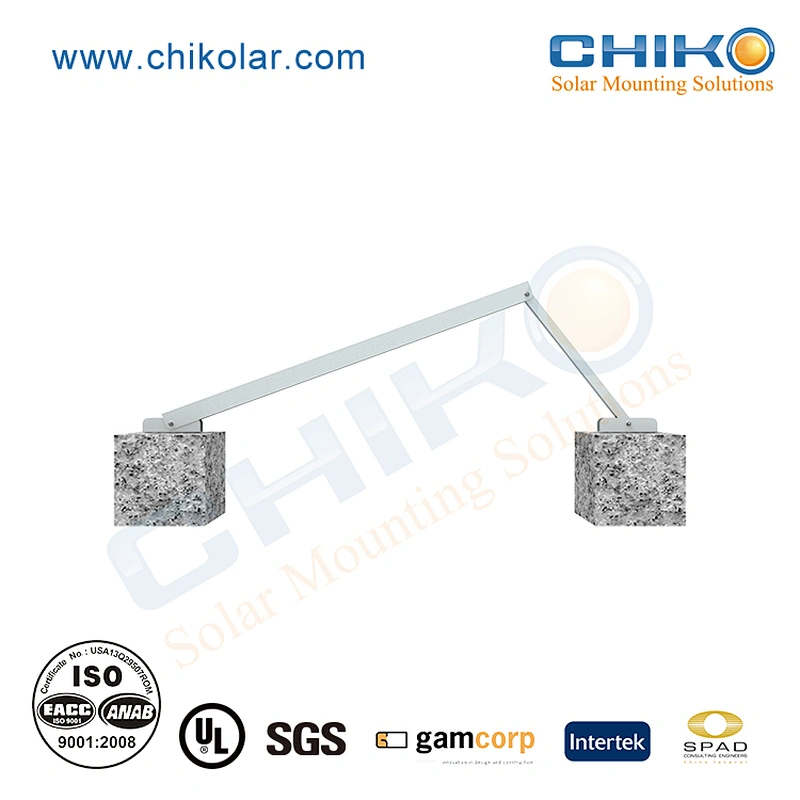

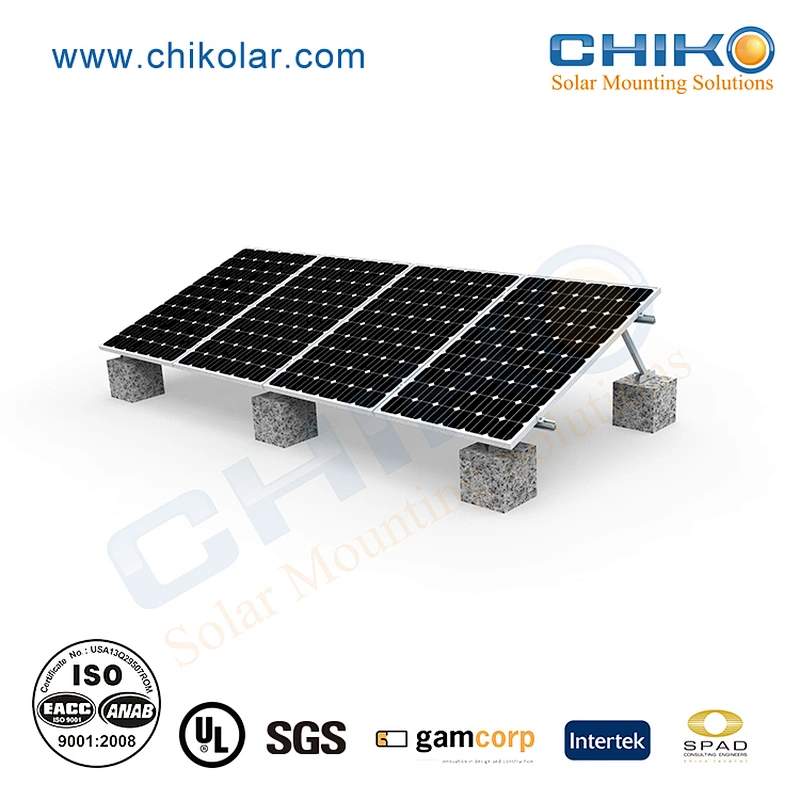

Aluminum Triangular Mounting

• Folding • Easy installation • Light weight • Cost-effective
• Fixed Tilt Angel: 15°,20°,30°
• Material: Anodized aluminium 6005-T5

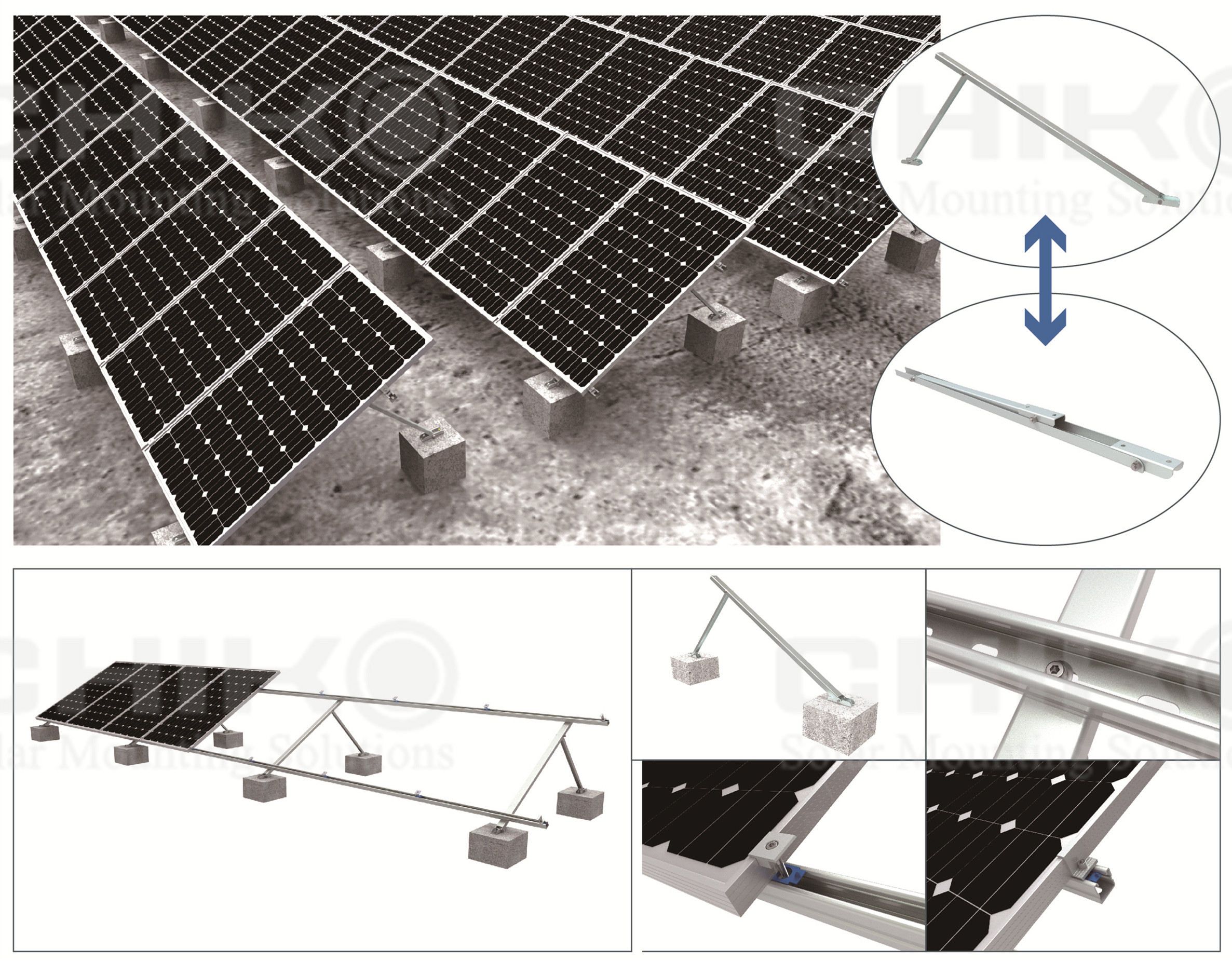

Adjustable Steel Triangular Mounting

• Folding • Easy installation •Angle adjustable • Cost-effective
• Mounting angel: 20°-15°adjustable
• Material: Hot galvanized steel Q235B

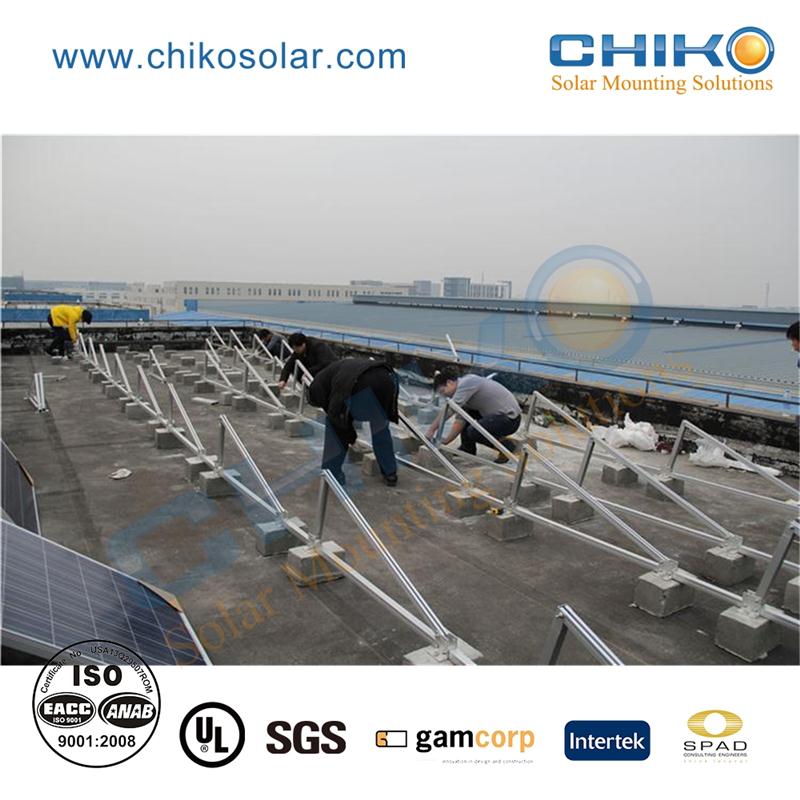

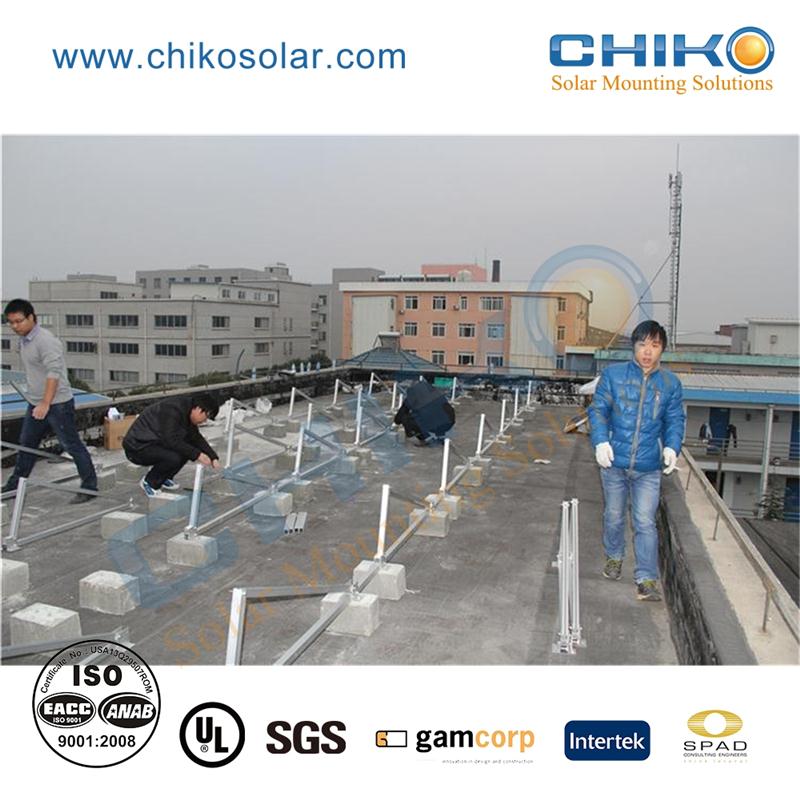

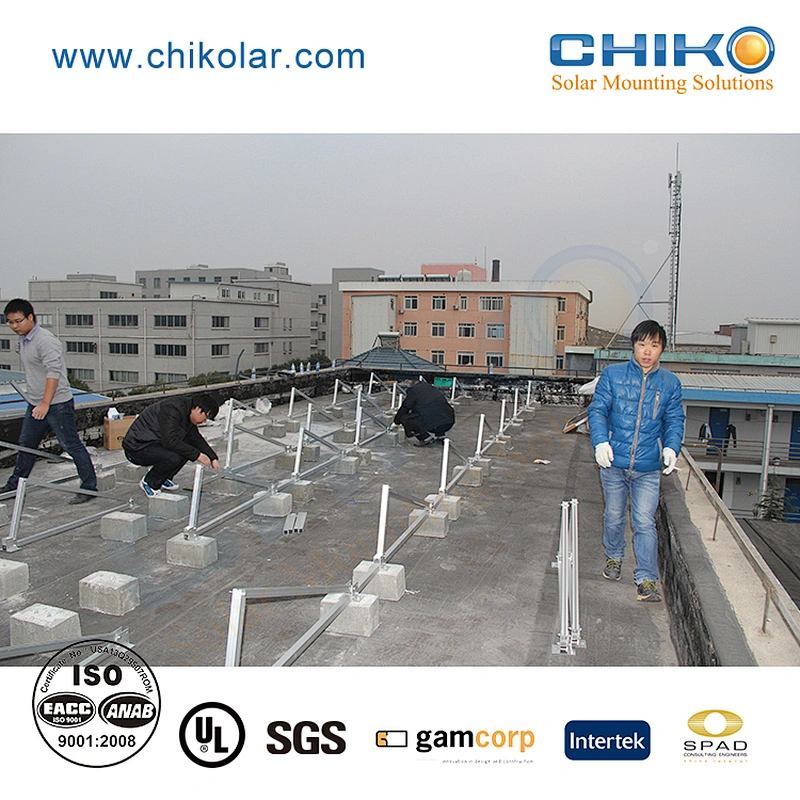

CHIKO Project Case

CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available. Anything further question and more solution, Contact us !

Recommend Products

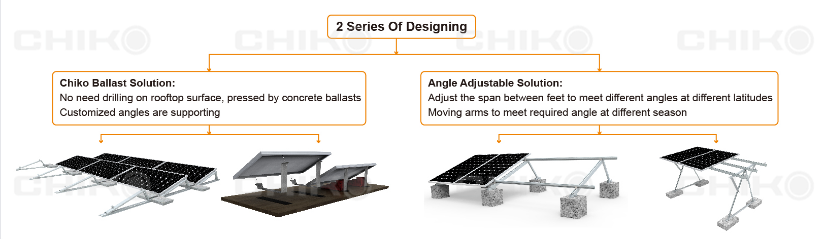

CHIKO Flat Roof Solar Mount System is engineered for flat concrete roof installation. Various ballast mounting system for TPO & EPDM roof and steel and aluminium triangular mounting system for common RCC flat roof. The engineer team ensure us the special design is also available. During design, fully consider local nature condition, the solution are strong and reliability solution.And all components are highly pre-assembled, ensure the mounting system fast installation and saving labor cost.

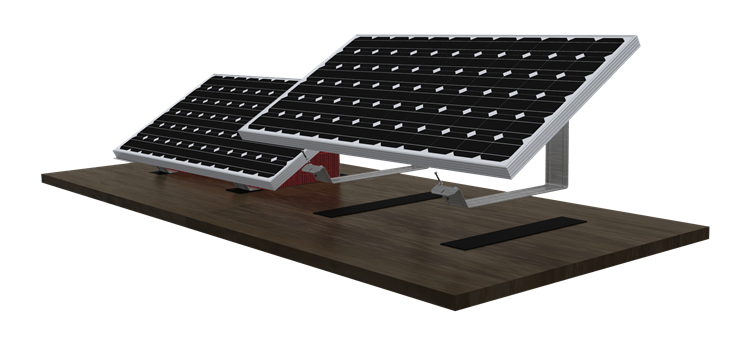

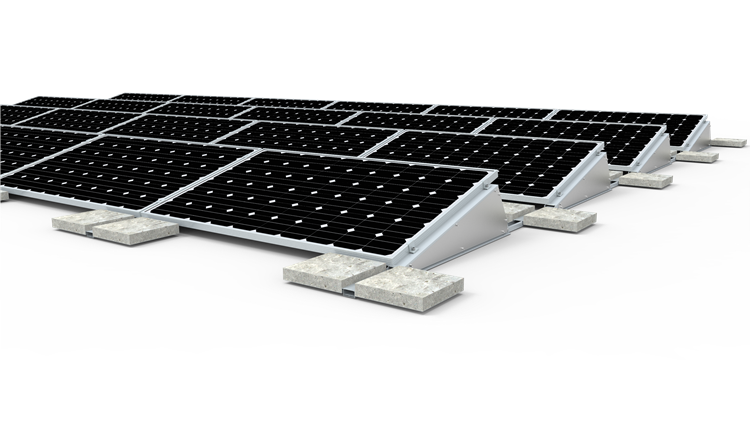

CHIKO Ballast I Mounting System

CHIKO Triangular Mounting System

Our service

Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
