- Specification:Normal
- Application:HOME
- Certificate:ASNZS1170/Intertek/SGS/Gamcorp/MCS/Intertek/SPAD
- installation site:rooftop
- Module orientation:Landscape or portrait
- Module Type:Framed or Frameless
- Installation Angel:10-60 °
- Duration:25years
- Place of Origin:CN;SHG
- Brand Name:Chiko
- Model Number:CK-FTH-013
- Wind Load:60M/S
- Snow Load:1.8KN/M2
- Warranty:10 Years
Metal roof
L Feet Mount CK-IL Series

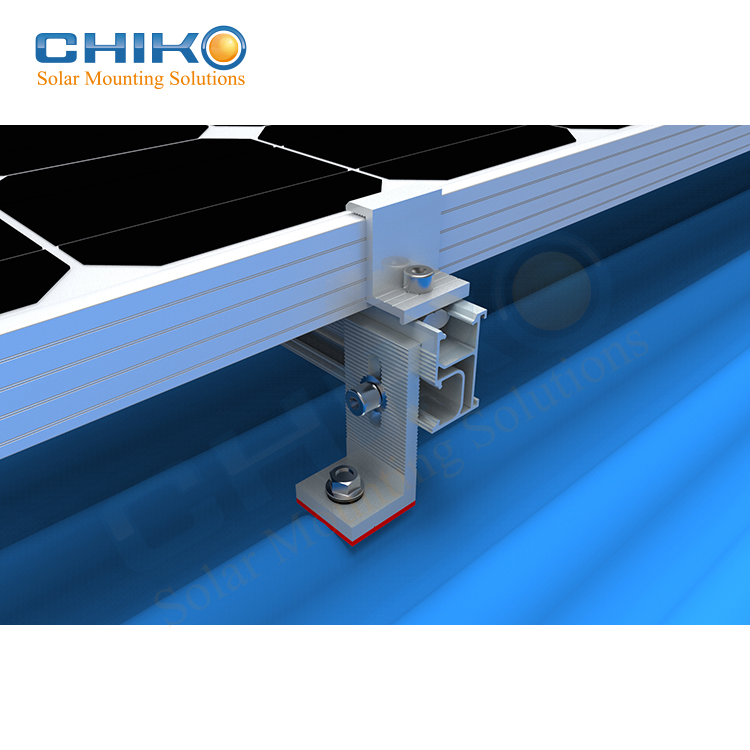

CHIKO L feet have been widely used on universal corrugated metal sheet roof. It can fix to the roof rafter directly. Also, it can be applied with hanger bolts and CHIKO deigning roof clamps.

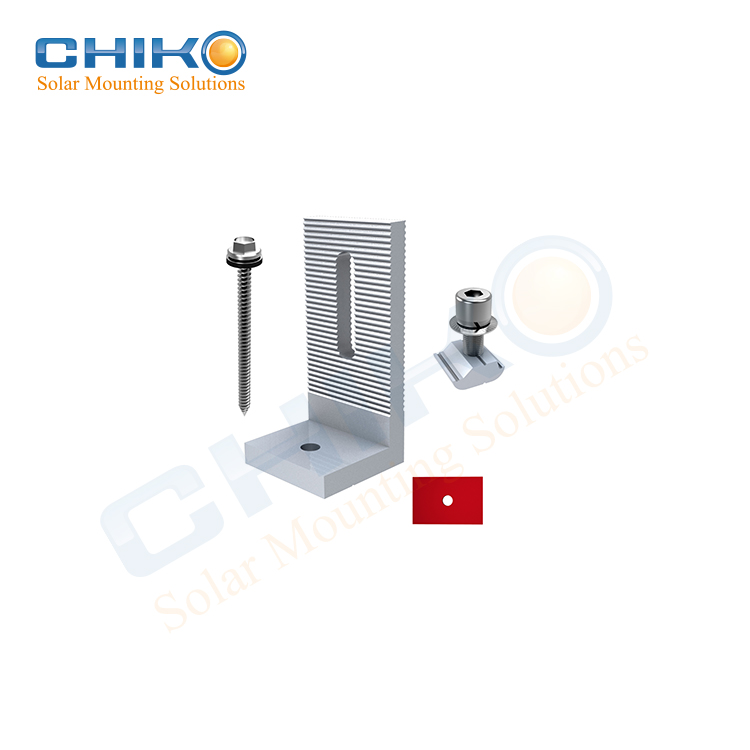

AL L Feet | 1 |
057 Nut | 1 |
SUS304 Bolt M8*25 | 1 |
SUS304 Washer M8 | 1 |
SUS304 Spring Washer M8 | 1 |
Self-tapping Screw 6.3*63 | 1 |
Silicon Rubber | 1 |
Fix to roof directly
It can be fixed on metal roof whether wooden rafter or steel purlin.This solution is most cost-saving and install conveniently

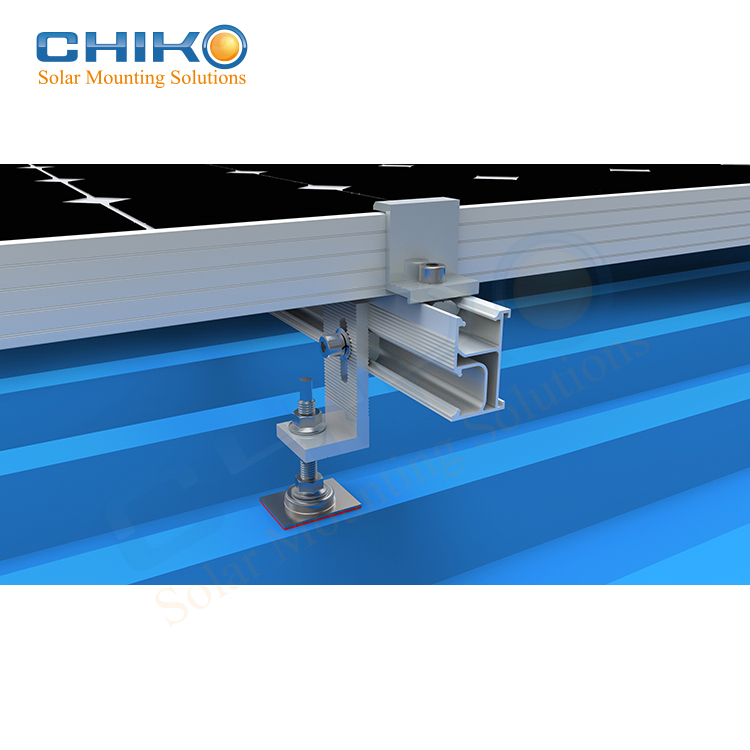

Apply with Hanger bolt
Hanger bolt is more stable than L feet only. It can make structure taller so that air can go throungh.

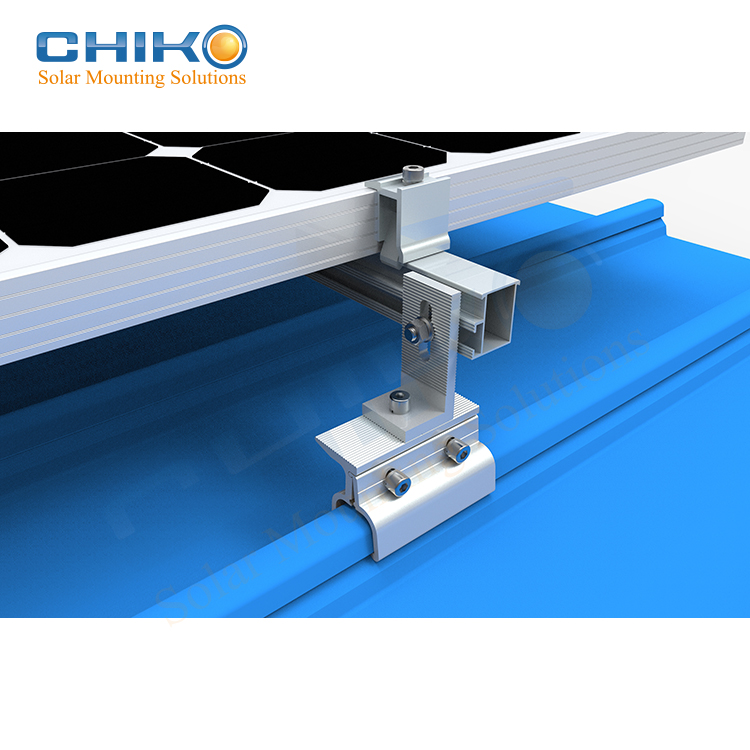

Apply with roof clamps

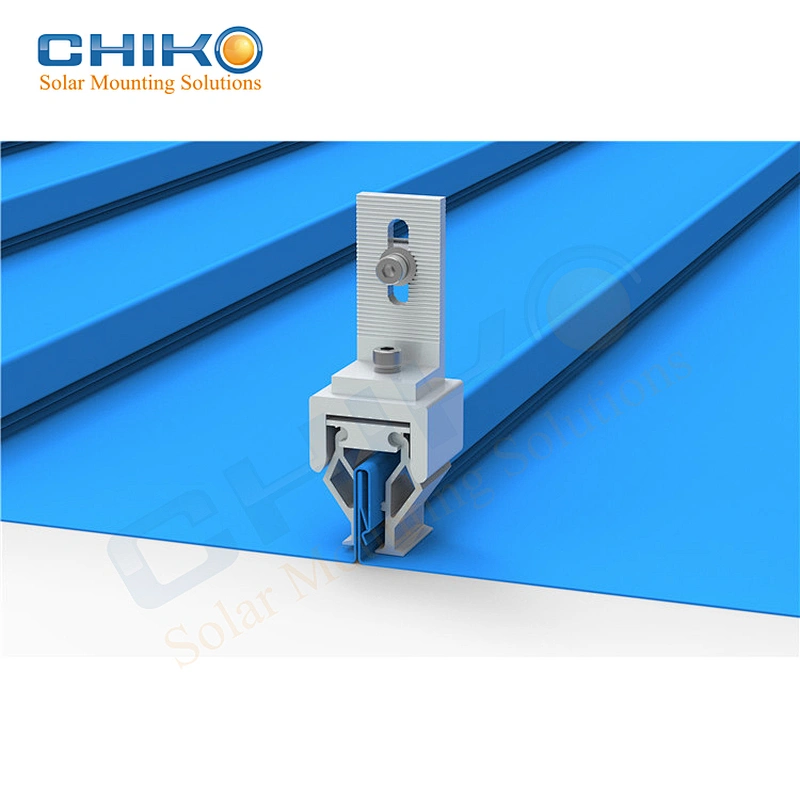

Standing seam roof clamp can clip with metal roof without drilling. Flexible with many kinds of metal roof.
Size Information | ||
Width(mm) | 40 | |
Length(mm) | 40 | |
Height(mm) | 85 | |
Thickness(mm) | 8 | |

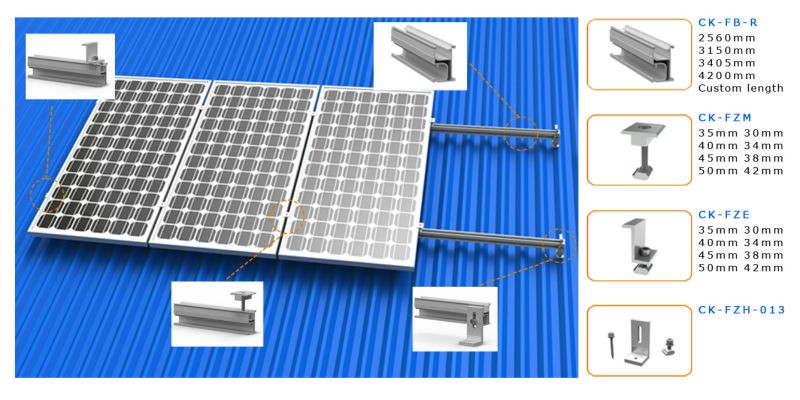

Whole Metal Roof Mounts
The all components for Metal roof mounts system
Chiko Tin Roof Solar Mounting System is engineered for the maximum flexibility possible in designing and planning for various metal roof solar system installation. It is applicable to install the usual module to flush with the pitched roof.
Using our innovative Rail and pre-assembled components like tilt-in T Module, clamp kit and various holding devices (like hanger bolt and L bracket etc.) our Metal Roof Mounting makes the installation easy and quick to save your labor cost and time.
This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs.
This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs.
