- Specification:Normal
- Category:Solar tin roof clip
- Application:Roof Mounting System
- Certificates:AS/NZS 1170
- Mixed Order:Available
- OEM Service:Acceptable
- Product name:solar panel end clips
- Certificate:ASNZS1170/UL/SGS/Gamcorp/MCS/Intertek/SPAD
- Color:Silver Black
- Warranty:10 Years
- Material:Aluminum Alloy.Stainless Steel
- Application:Home
- Place of Origin:CN;SHG
- Brand Name:CHIKO
- Output Voltage (V):110V/220V
- Model Number:Mid end clamps
- Work Time (h):24 Hours
- Load Power (W):5000w 10kw 15KW
CHIKO Clamp Series
Made of extruded anodized aluminum,with universal and adjustable clamp to realize 30-50mm framed and 5~7.5mm thin film solar panel installation.
Part Number | Description | |
Mid Clamp | CK-FTM-X | 30 / 33 / 35 / 38 / 40 / 45 / 50mm / customized length |
End Clamp | CK-FTE-X | 30 / 33 / 35 / 38 / 40 / 45 / 50mm /customized length |
Adjustable Mid Clamp | CK-FT-AM | 30 / 34 / 38 / 42mm /customized length |
Adjustable End Clamp | CK-FT-AE | 30 / 34 / 38 / 42mm /customized length |
Thin Film Mid Clamp | CK-FTM-M-X | 5mm-7.7mm |
Thin Film End Clamp | CK-FTM-E-X | 5mm-7.7mm |
Product Showcase
CHIKO mid & end clamp series Provide silver and black innovative design, can be applied to universal roof and ground mounting.

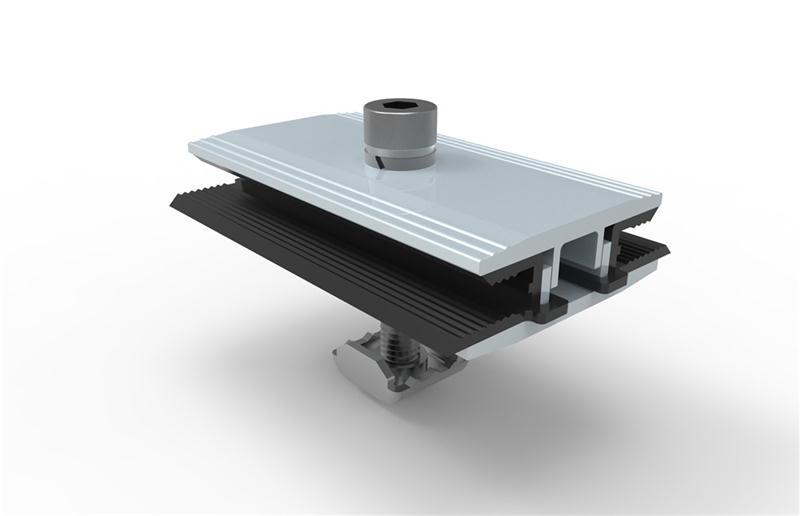

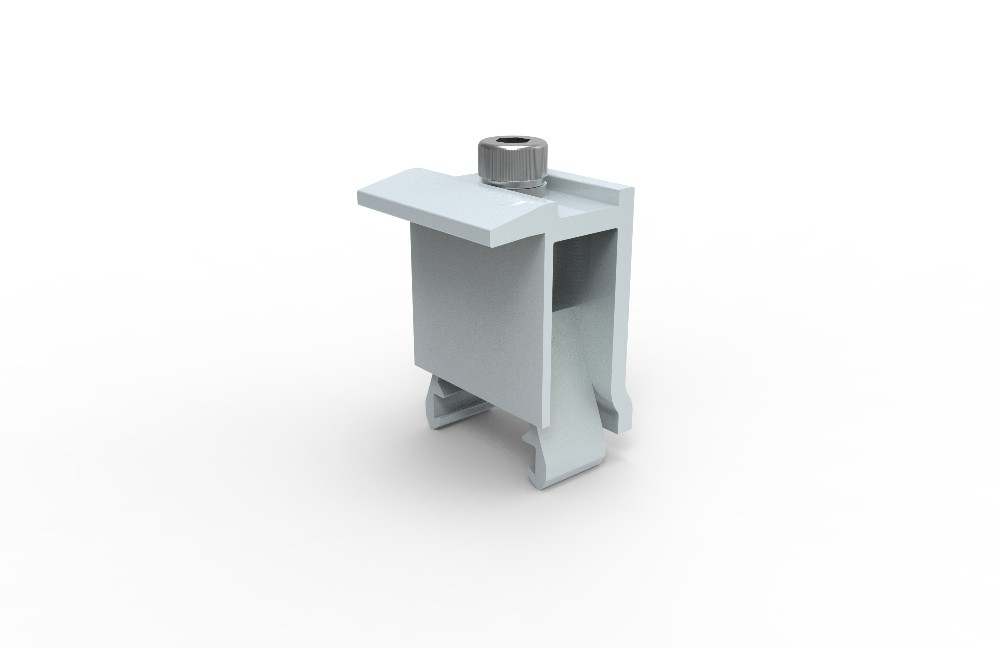

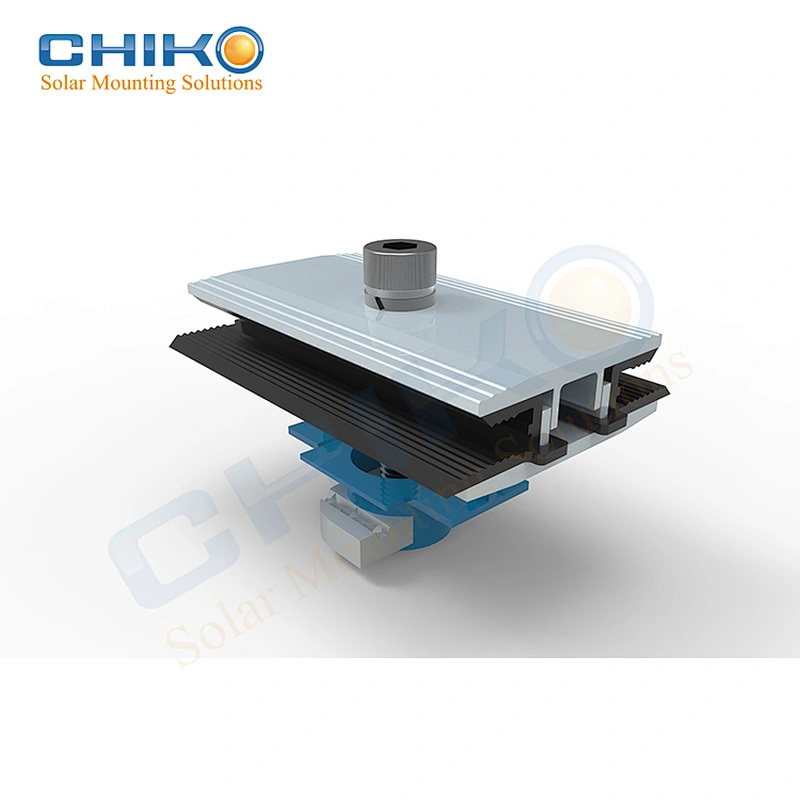

A. Mid clamp

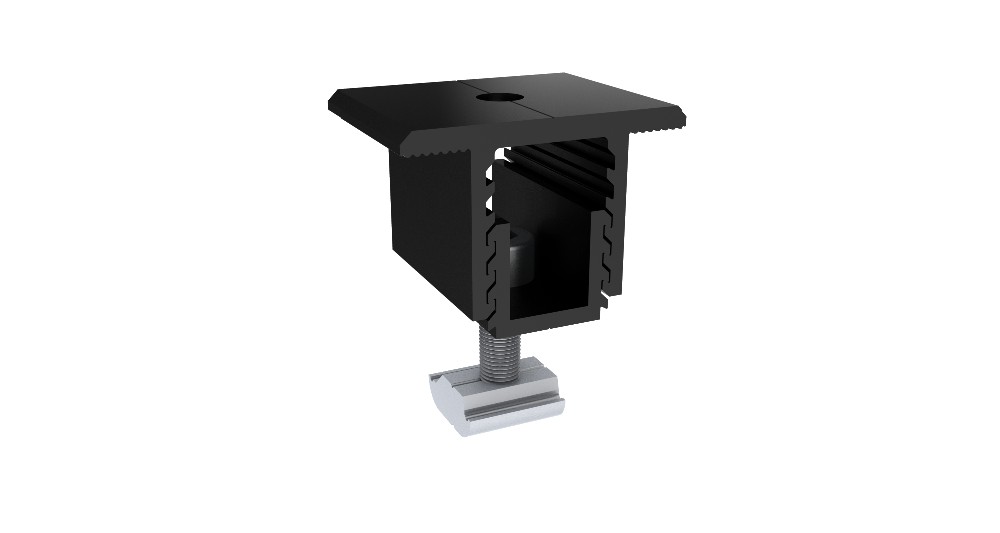

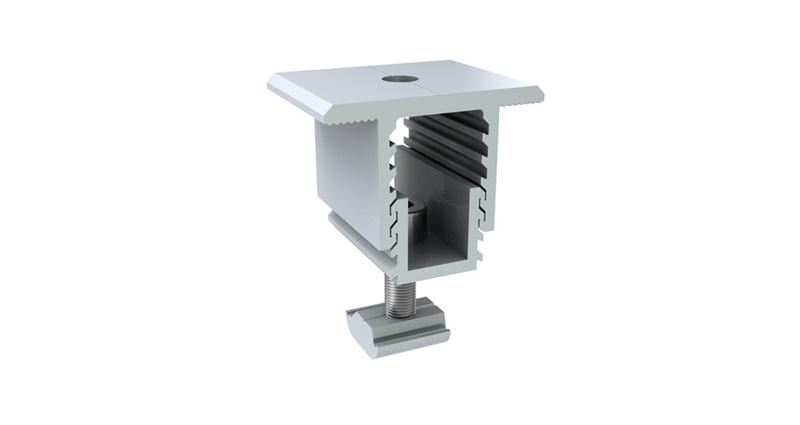

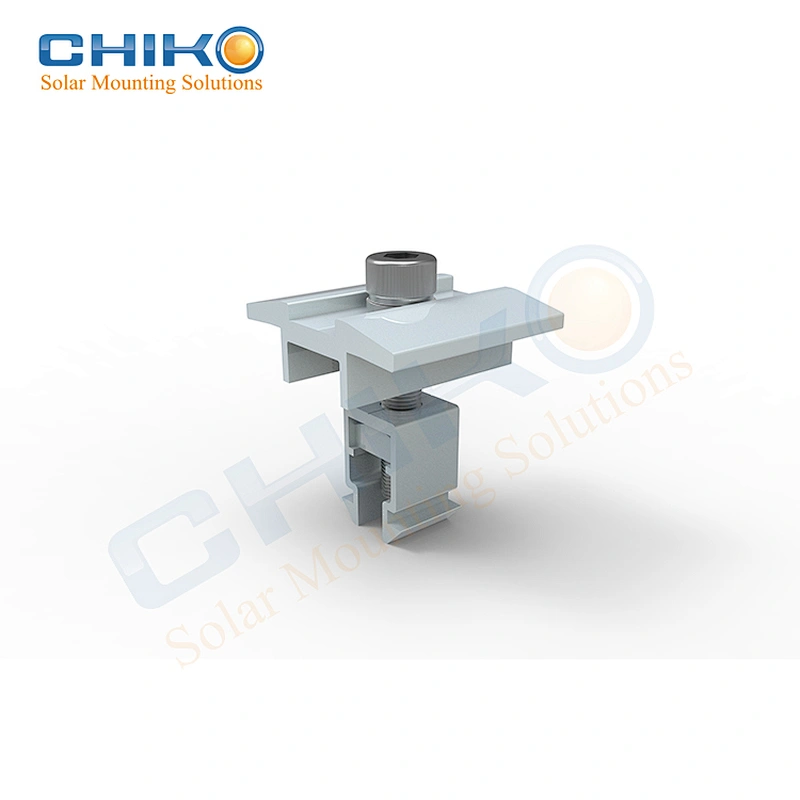

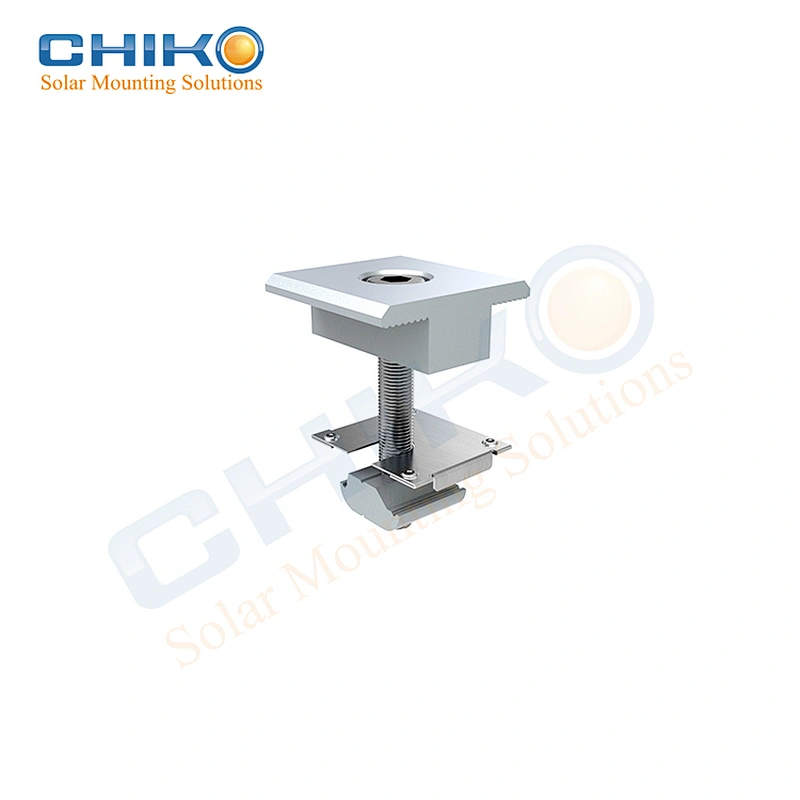

B. Adjustable Mid clamp

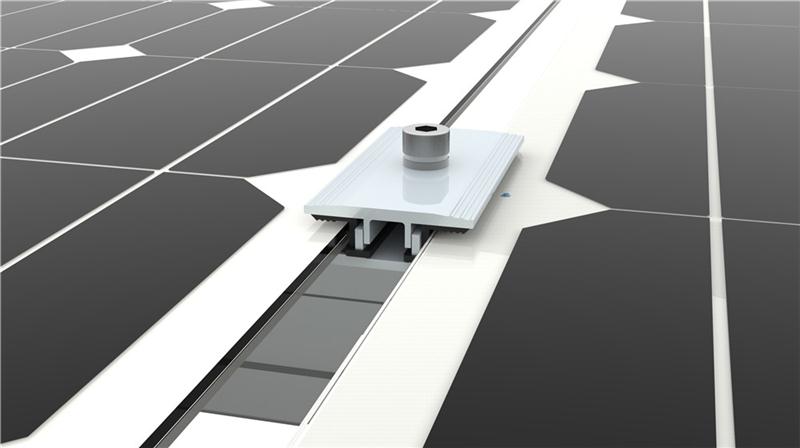

Application of mid clamp

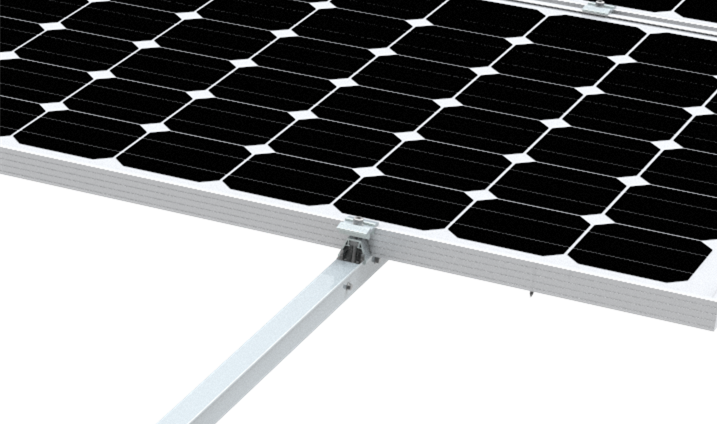

Application of mid clamp

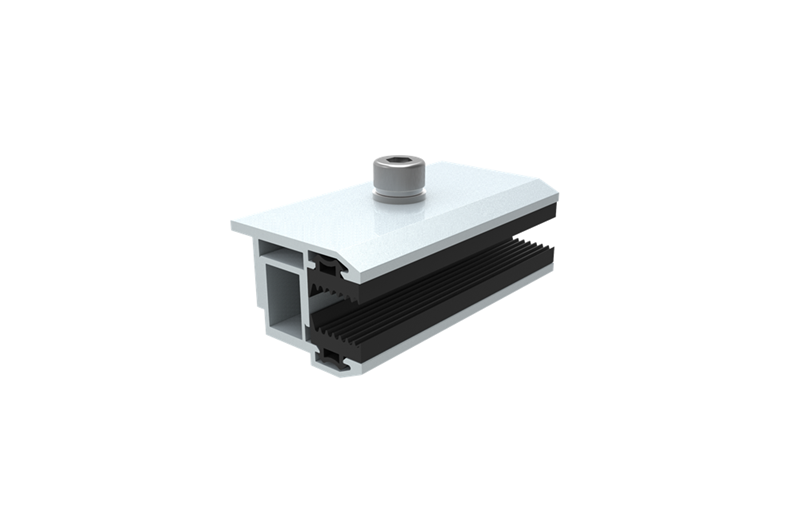

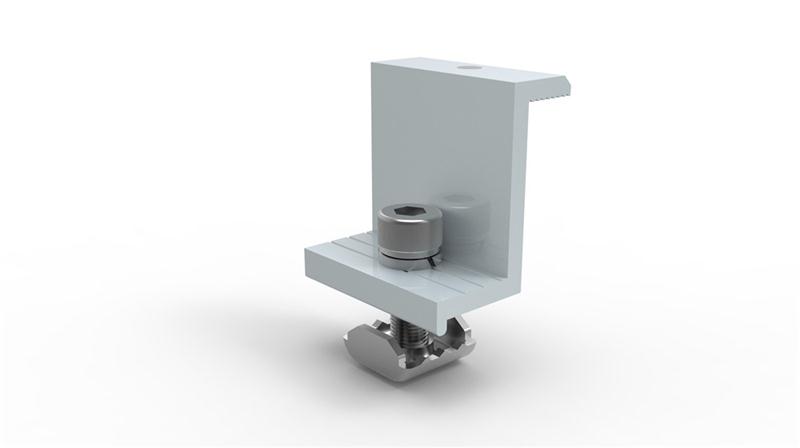

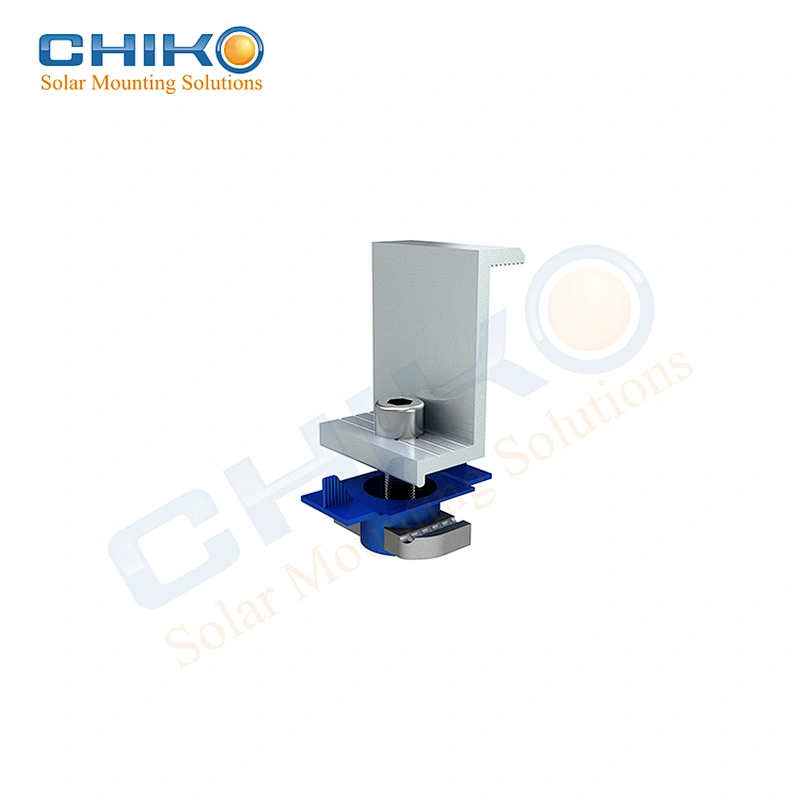

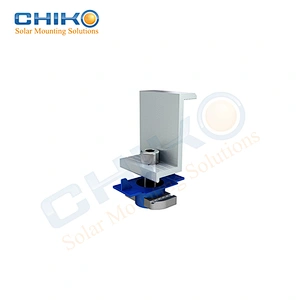

C. End clamp

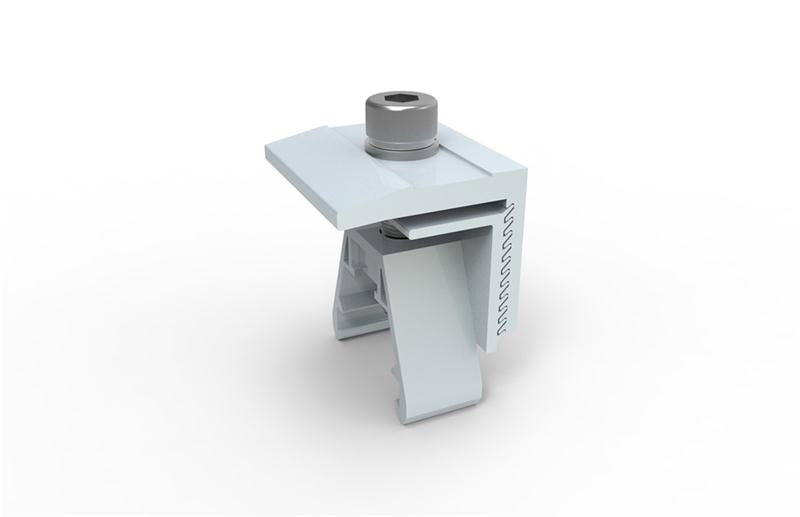

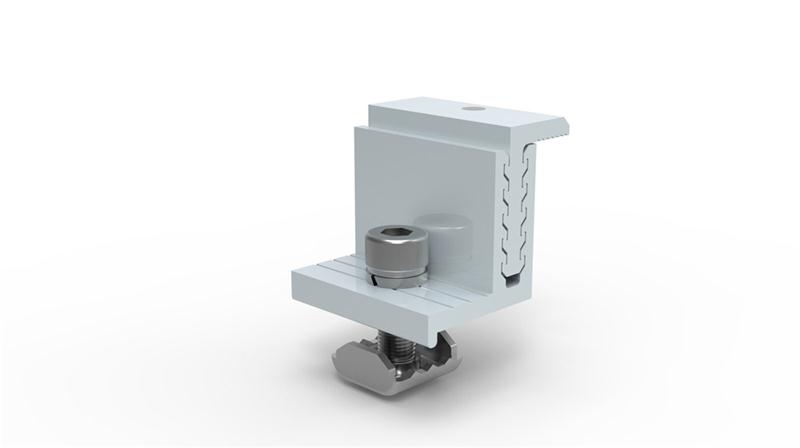

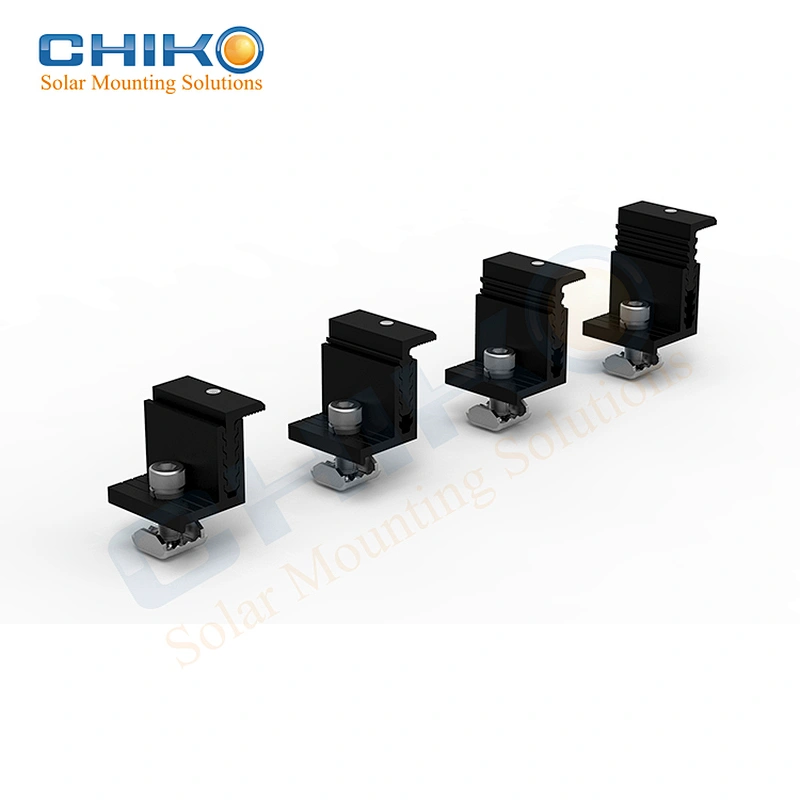

D. Adjustable End clamp

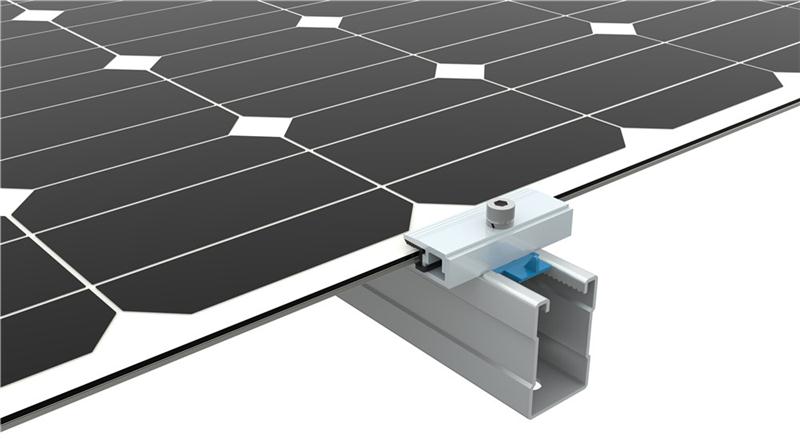

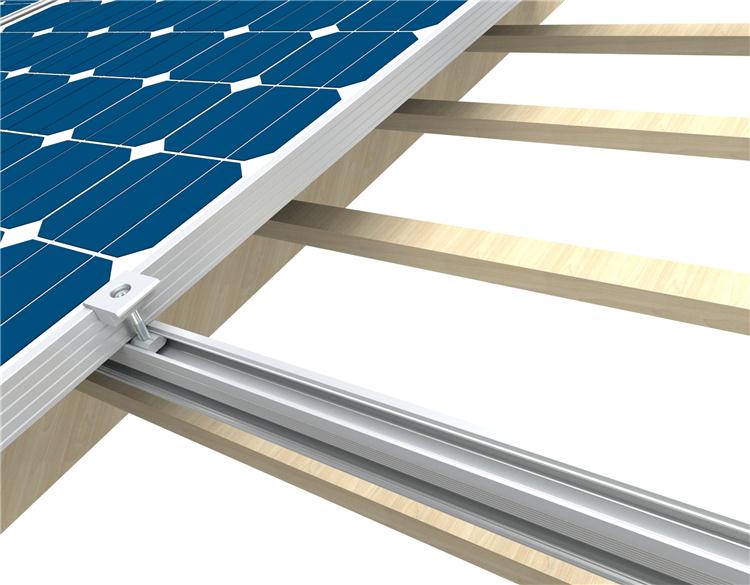

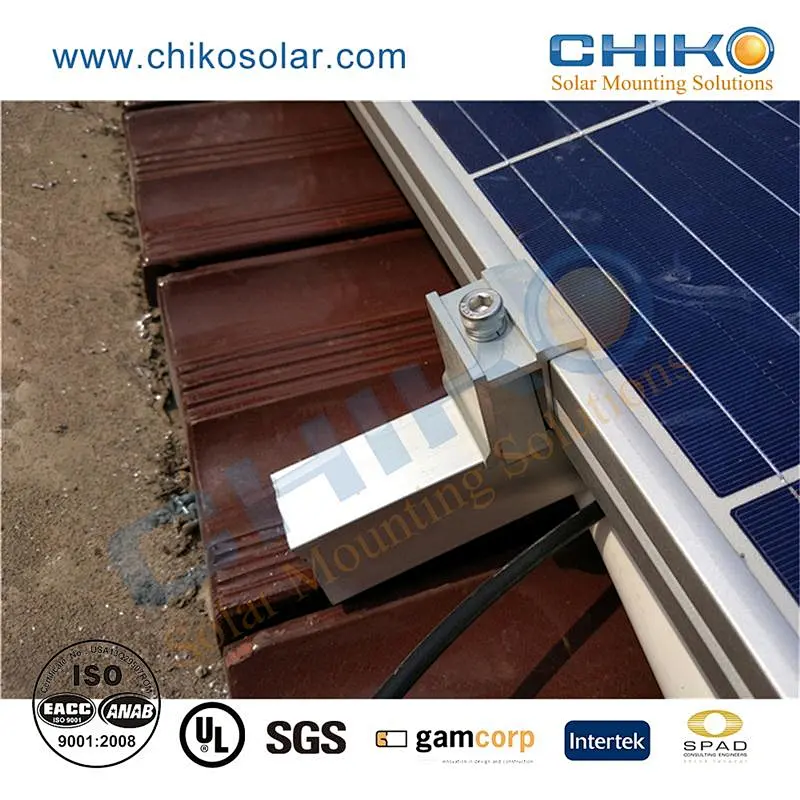

Application of end clamp

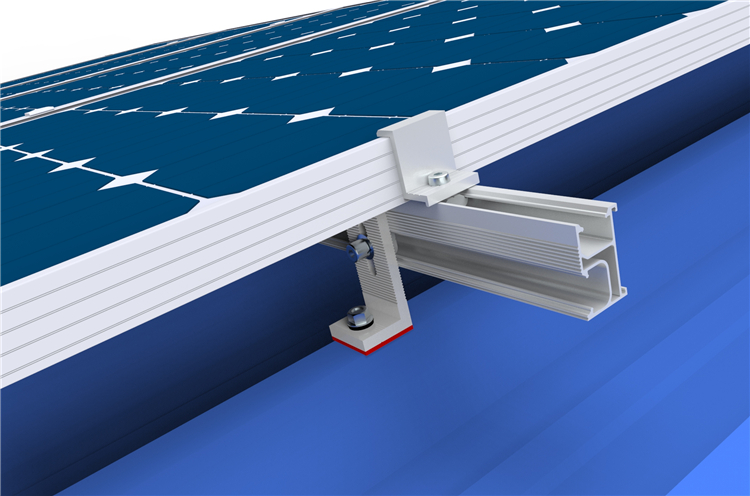

Application of end clamp
E. Thin Film Solar Clamps
Thin film mid clamp

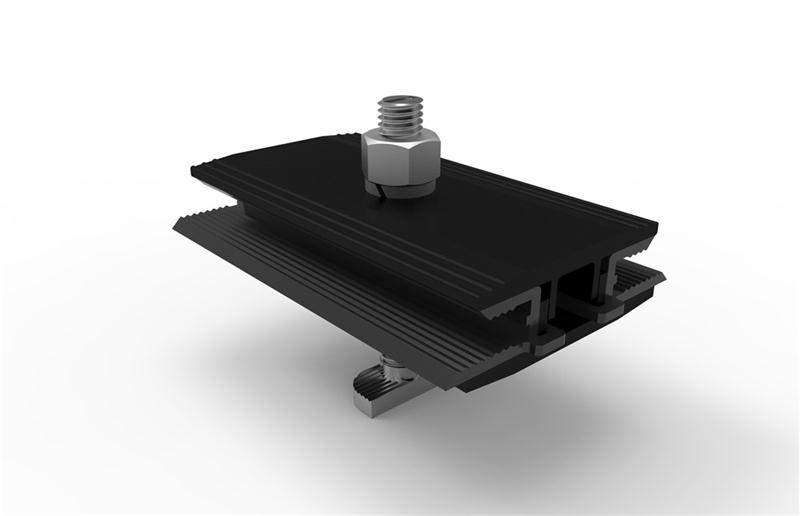

Black thin film mid clamp
Thin film end clamp
Application of thin film mid clamp
Application of thin film end clamp
1. CHIKO Service
For Solar Mounting Solution and Request Contact Info:
Terry Lynn
Email: chiko(@)chikolar.com
Phone:0086 13816459677
Please provide data as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
