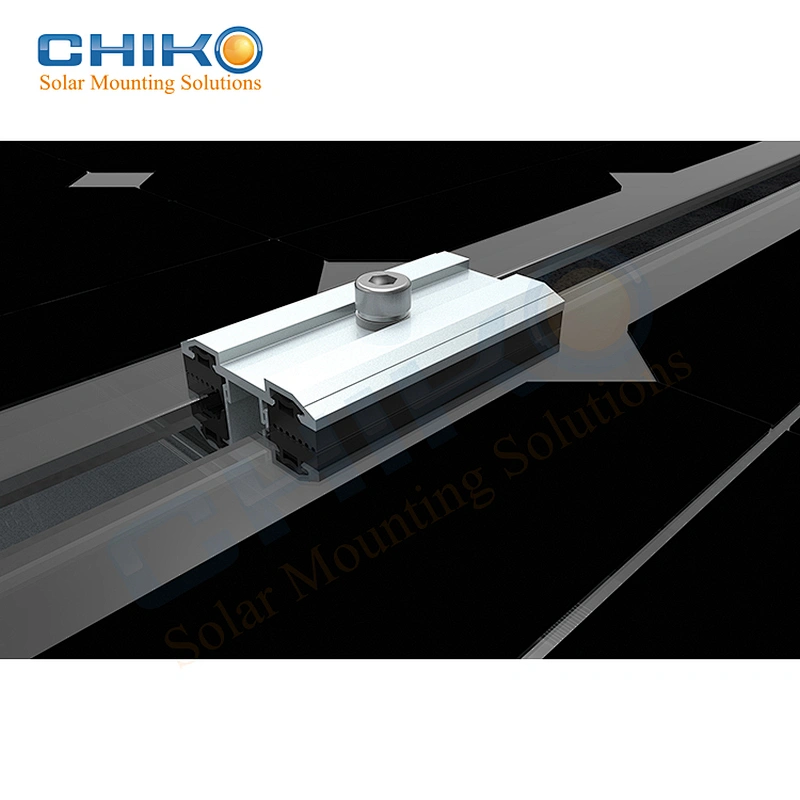

Solar Frameless Panel Clamp/Thin Film Clamp/Solar Clamp

Model NO.: CK-FTE-57A
Price:: USD 0.05-0.06 / watts
Minimum order quantity: 10000 watts
Supply Ability: 1000000.0 watts / Month
Country of Origin: SHANGHAI,CHINA

Quantity:

Product Description

Specification:Normal
Certificate:ASNZS1170/UL/SGS/Gamcorp/MCS/Intertek/SPAD
installation site:Open Field or Rooftop
Material:Aluminum Alloy/Stainless Steel
Max wind speed:up to 60m/s
Max snow load:Up to 1.4kn/m2
Installation Angel:10-60 °
Warranty:10years
Duration:25years
Warranty:10YEARS
Free installation service:NO
Application:Home
Solar Panel Type:Monocrystalline Silicon
Solar Panel Type:Polycrystalline Silicon
Mounting Type:Ground Mounting
Mounting Type:Roof Mounting
Mounting Type:Carport Mounting
Mounting Type:BIPV Mounting
Pre-sales project design:Y
Place of Origin:CN;SHG
Brand Name:Chiko
Model Number:CK-FTE-57A
Work Time (h):24 Hours
Certificate:CE/UL/ASNZS1170/intertek/SGS/MCS/Intertek/SPAD

CHIKO Clamp Series

Made of extruded anodized aluminum,with universal and adjustable clamp to realize 30-50mm framed and 5~7.5mm thin film solar panel installation.

	Part Number	Description
Mid Clamp	CK-FTM-X	30 / 33 / 35 / 38 / 40 / 45 / 50mm / customized length
End Clamp	CK-FTE-X	30 / 33 / 35 / 38 / 40 / 45 / 50mm /customized length
Adjustable Mid Clamp	CK-FT-AM	30 / 34 / 38 / 42mm /customized length
Adjustable End Clamp	CK-FT-AE	30 / 34 / 38 / 42mm /customized length
Thin Film Mid Clamp	CK-FTM-M-X	5mm-7.7mm
Thin Film End Clamp	CK-FTM-E-X	5mm-7.7mm

Product Showcase

CHIKO mid & end clamp series Provide silver and black innovative design, can be applied to universal roof and ground mounting.

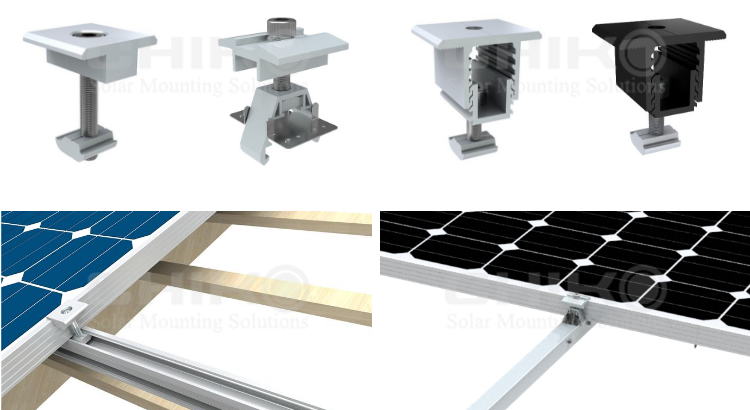

A. Mid clamp & Adjustable Mid clamp

Mid Clamp-1.png

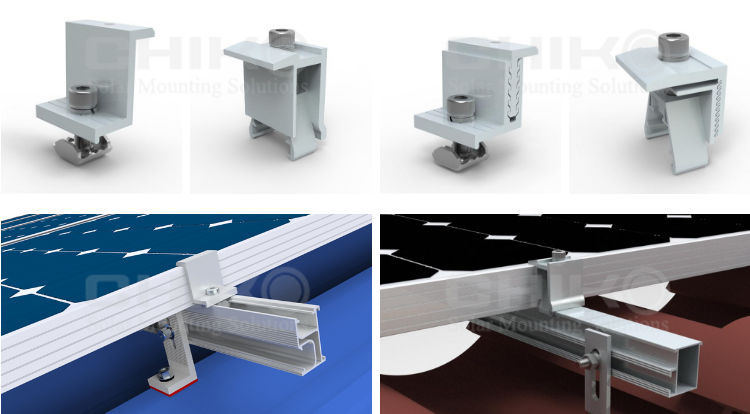

B. End clamp & Adjustable End clamp

End Clamp.png

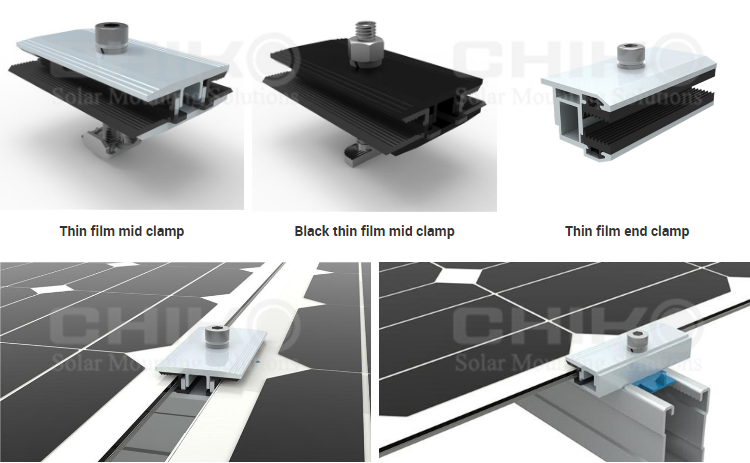

C. Thin Film Solar Clamps

Thin flim clamp.png

Our Service

1. CHIKO Service

For Solar Mounting Solution and Request Contact Info:
Terry Lynn
Email: chiko(@)chikolar.com
Phone:0086 13816459677

Please provide pv module clamp as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
