CHIKO adjustable S Tile Roof Mount

Model NO.: CK-FTH-01
Price:: USD 0.03-0.05 / watts
Minimum order quantity: 50000 watts
Supply Ability: 1000000.0 watts / Month
Country of Origin: SHANGHAI,CHINA

Quantity:

Product Description

Certificate:ASNZS1170/Intertek/SGS/Gamcorp/MCS/Intertek/SPAD
installation site:Pitched rooftop
Material:Aluminum Alloy/Stainless Steel
Module orientation:Landscape or portrait
Module Type:Framed or Frameless
Installation Angel:10-60 °
Duration:25years
Place of Origin:CN;SHG
Brand Name:Chiko
Model Number:CK-FTH-01
Wind Load:60M/S
Snow Load:1.8KN/M2
Warranty:10 Years

Tile roof

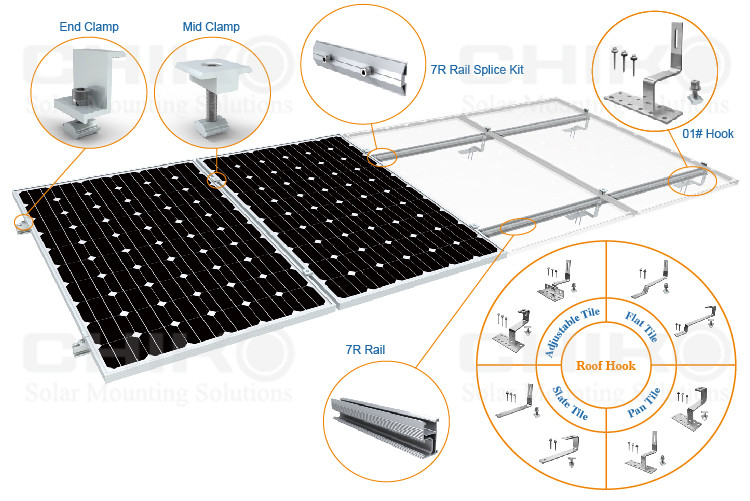

CHIKO Efficient Tile Roof Mounting

Designed as a modular unit assembly system with quality materials. Which enables an installer to install any module in almost any mounting situation or configuration.The components are easy to install and used for variety of tile roof types.

1. Product Showcase

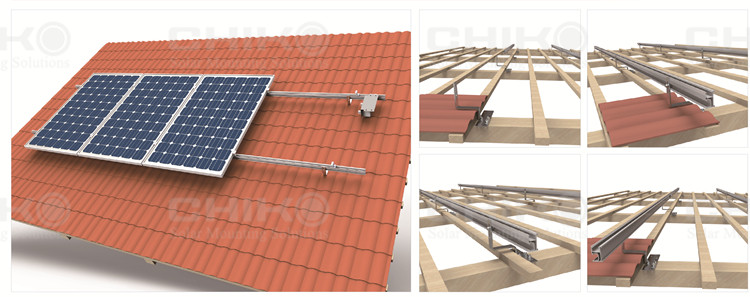

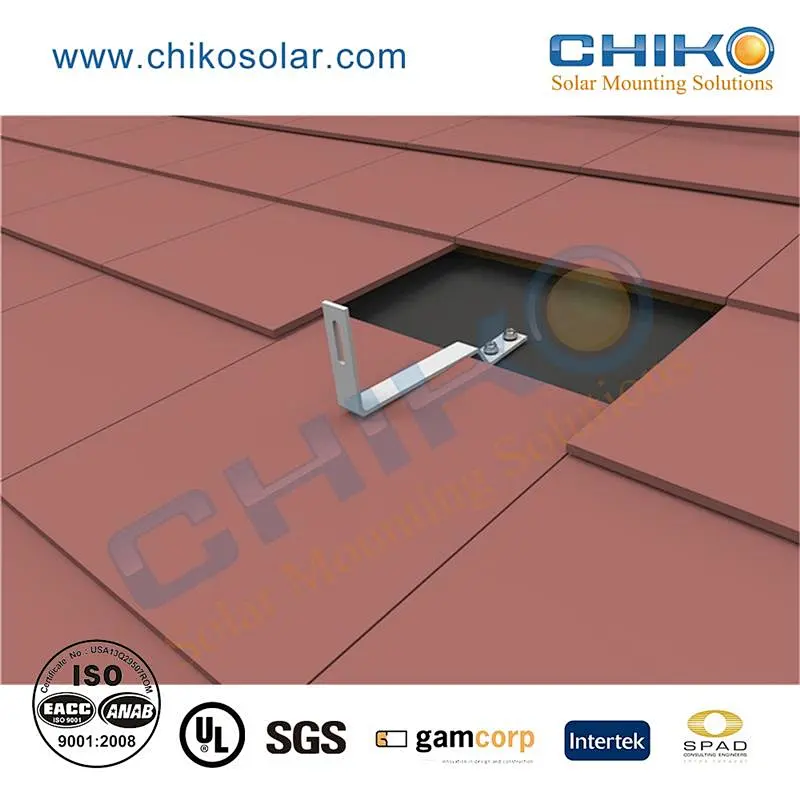

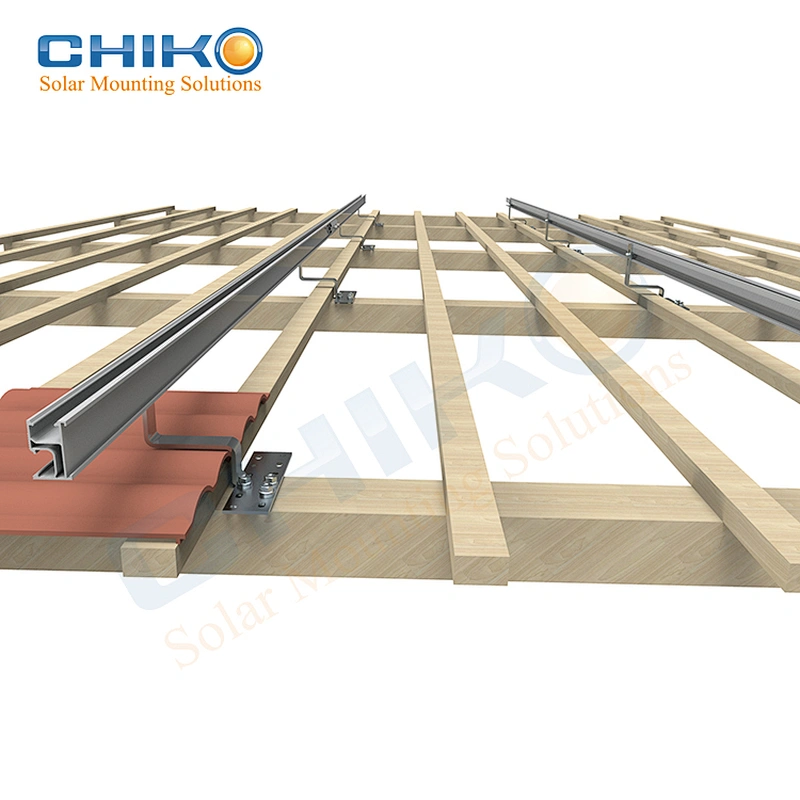

A. S Tile Roof Mounting

Give you different options for installation on rail (vertical or horizontal)

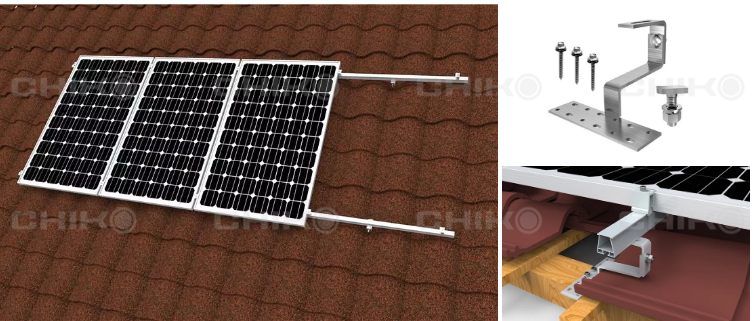

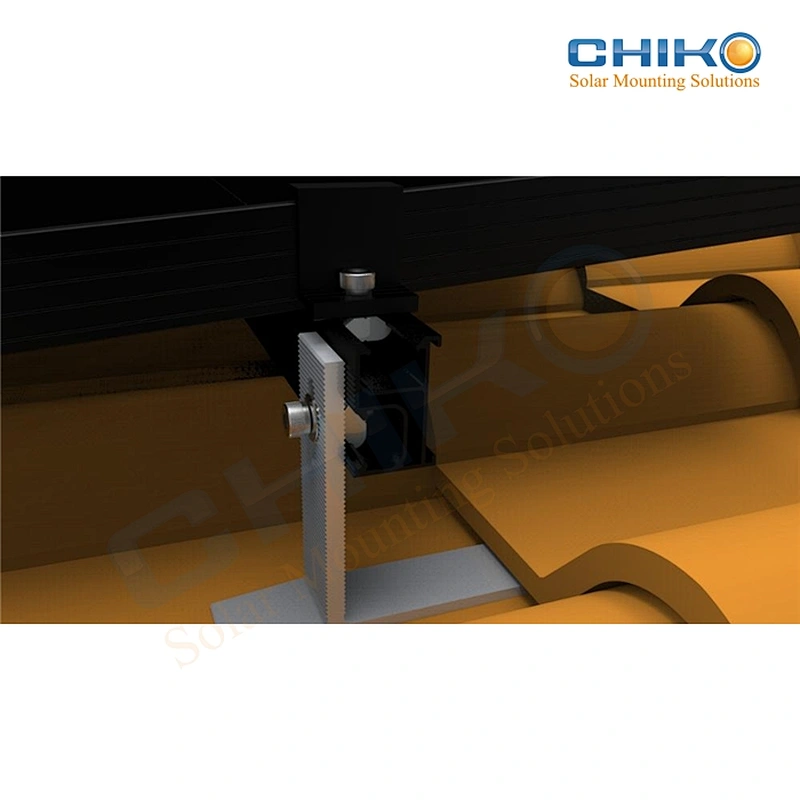

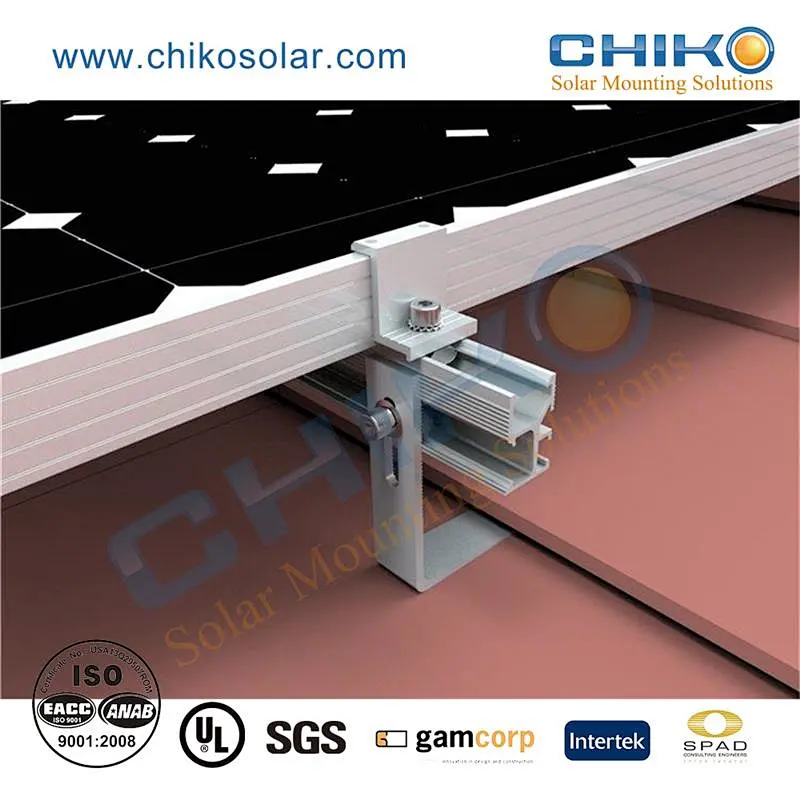

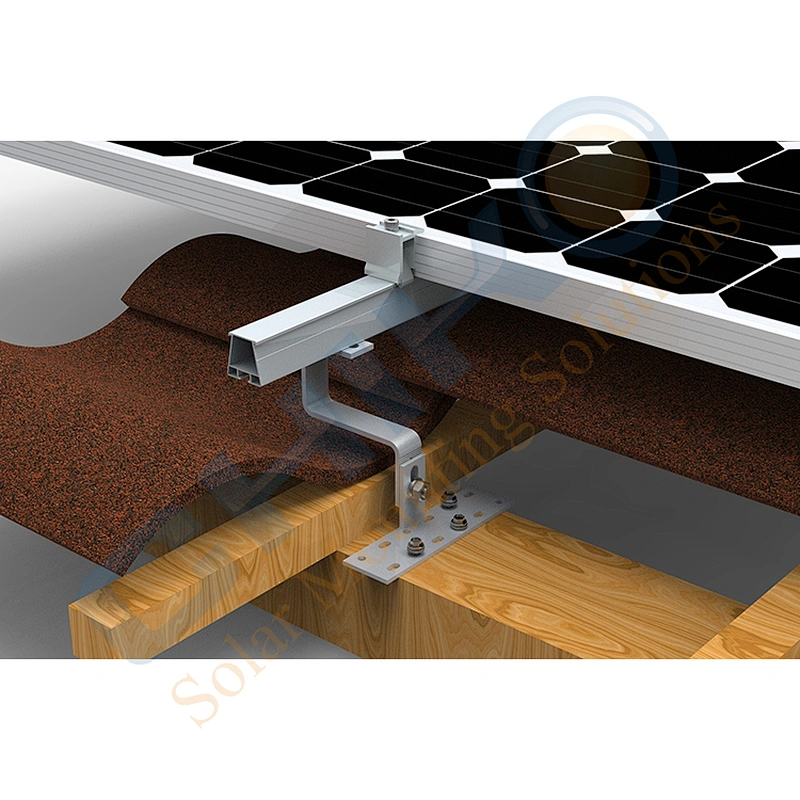

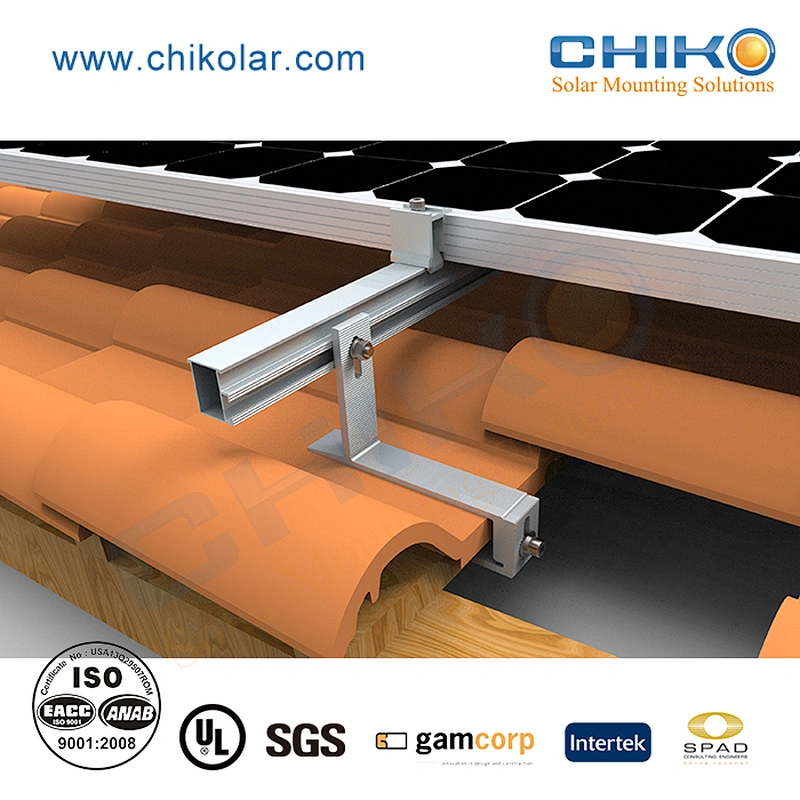

B. Adjustable S Tile Roof Mounting

Can be adjusted horizontally and vertically, which gives more versatility than regular S Tile Hook.

2. Features

⊙ Easily adaptable to most tile roof types: Pan tile roof,Cement/Flat tile roof,Asphalt Shingles
⊙ Supports high wind and snow loads
⊙ Pre-assembled components designed for fast and easy installation
⊙ Available to match all kinds of solar panels
⊙ Available in portrait and landscape mounting solution

Roof pitch	Rail lengths	Clamps	Clamp colors	Splice kit	PV modules
0°- 45°& walls	2,3 and 4 modules	Pre-assembled & Al6005-T5	Silver or black	Aluminum, fastener-free installation	Suitable for all standard module

3. Advantages

⊙ Flexible system suitable for most pitched roof designs.
⊙Fixed Chiko hooks or adjustable Chiko hooks for all type of tiles.

⊙Complete range of stainless steel hooks and aluminum profiles.
⊙Compatible with all Chiko profiles

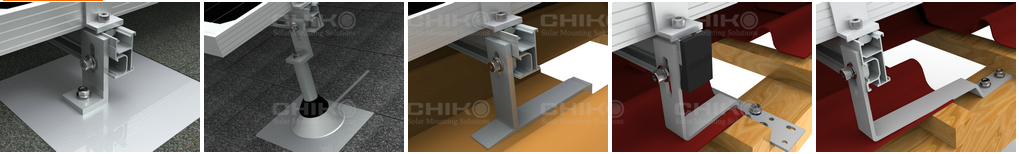

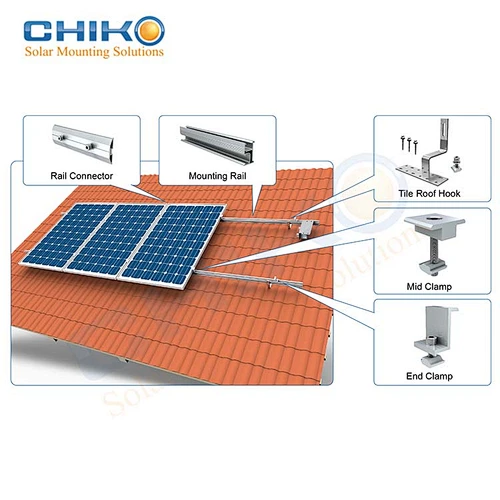

4. CHIKO More Tile Roof solar Mounting Solution

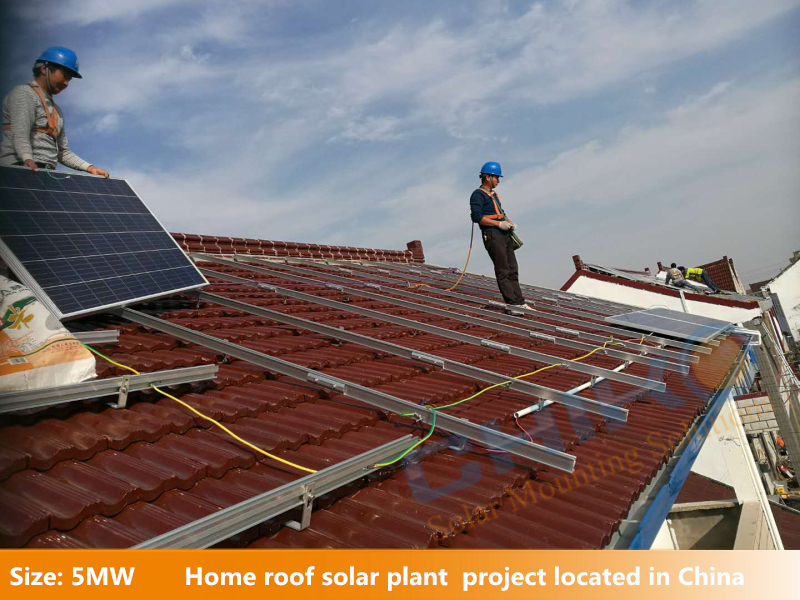

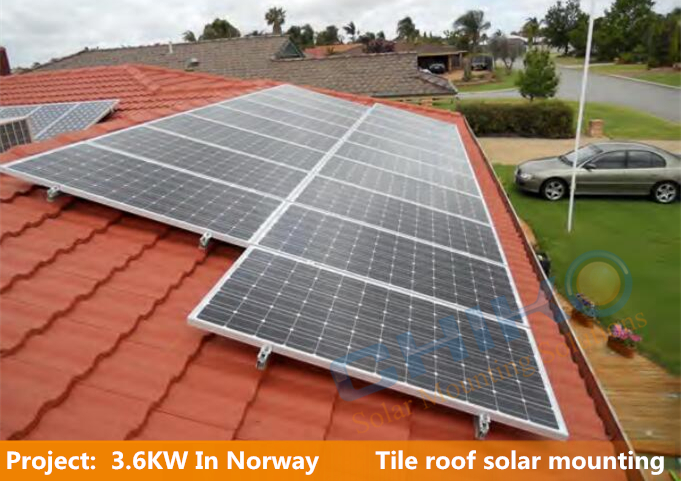

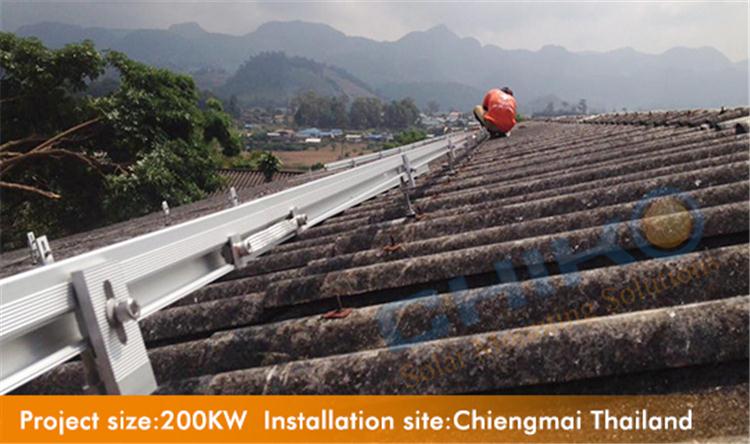

5. CHIKO Project

Our service

Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
