Flat Tile Mounting CK-FT Series

Model NO.: Flat tile-CK-FTH-06
Price:: USD 0.03-0.06 / watts
Minimum order quantity: 1000 watts
Supply Ability: 10000.0 watts / Month
Country of Origin: Shanghai Port

Quantity:

Product Description

Materials:SUS304
Category:Solar Tiles Roof
Certificates:AS/NZS 1170
Building Height:Up to 20m
Material:Aluminum Alloy
Certificate:ISO9001:2008
Warranty:10 Years
Place of Origin:CN;SHG
Brand Name:CHIKO
Model Number:Flat tile-CK-FTH-06
Wind Load:60M/S
Snow Load:1.8KN/M2
Warranty:10 Years

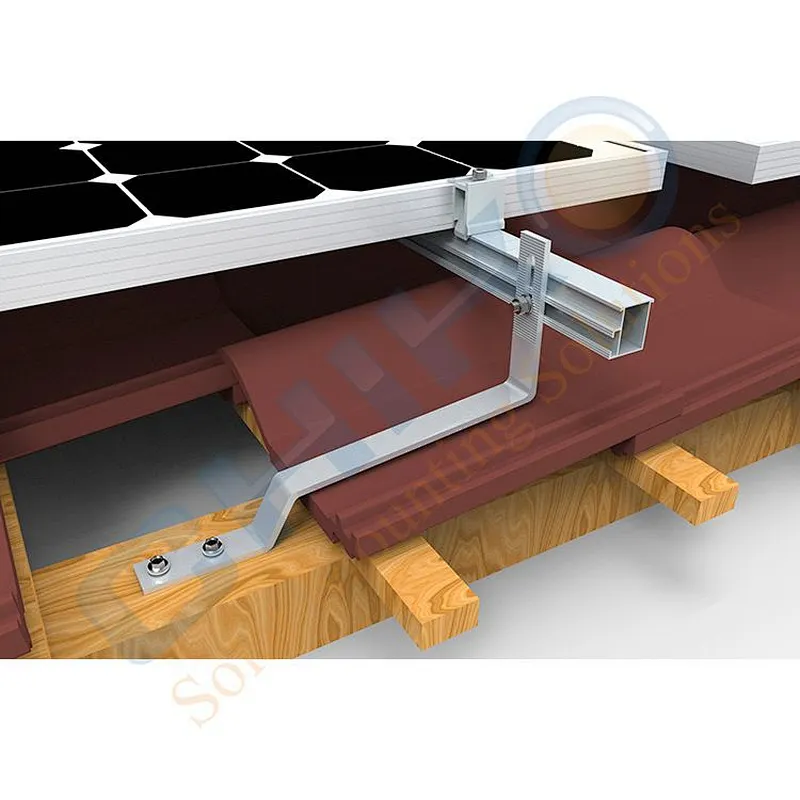

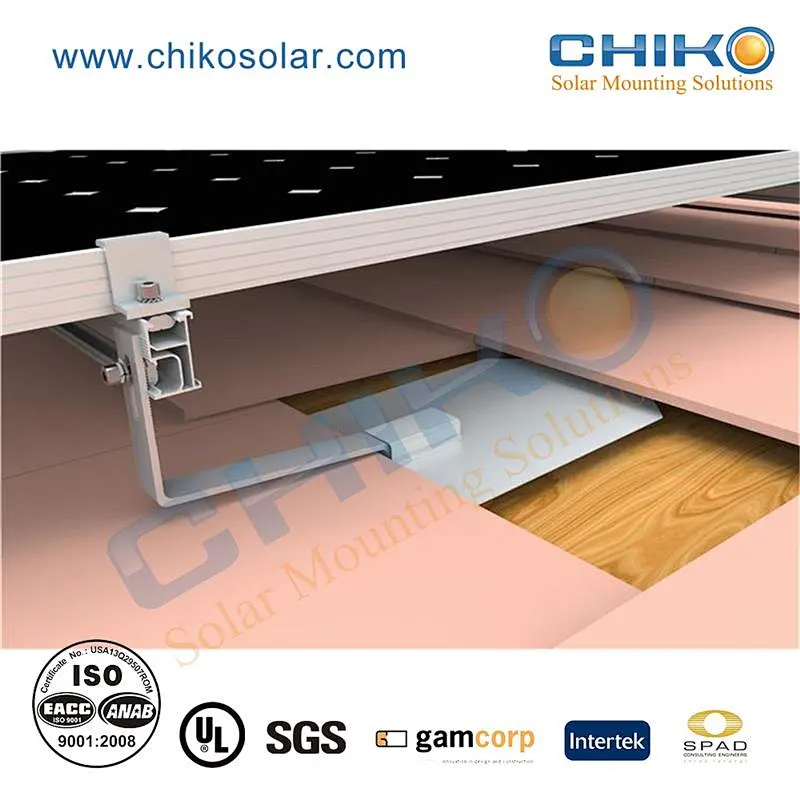

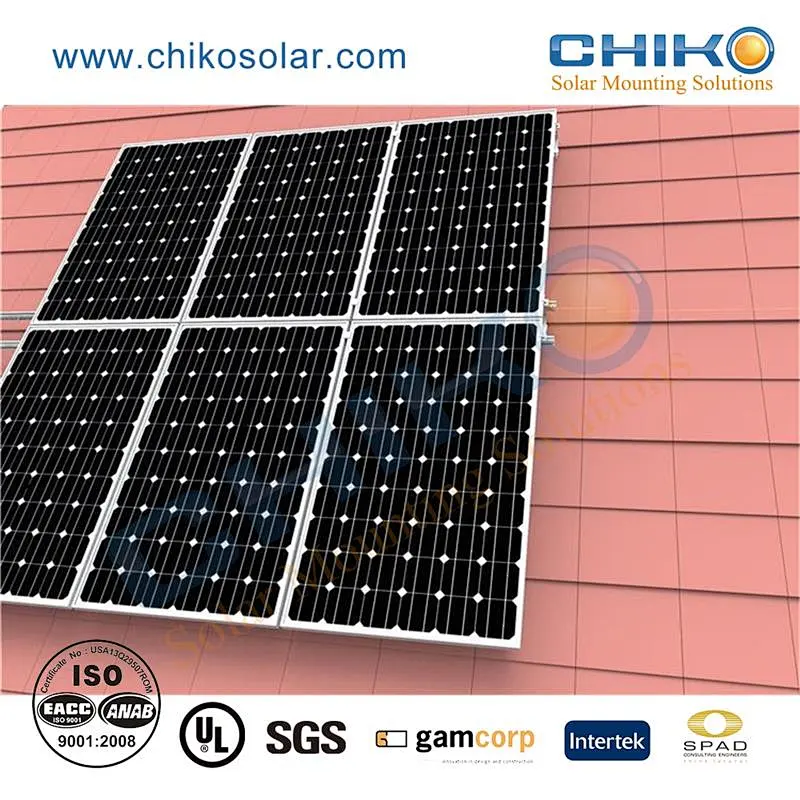

High Efficient pv mounting structure for flat tile roof

CHIKO Flat Tile roof hook offers the best and easiest solution for installation on a slate, cement or flat tile roof.
Wide selection of different components and systems enables secure with Chiko systems to almost any module configuration on each roof.
Due to our high quality and sophisticated components is achieved by rapid assembly times and reliable durability with structural analysis.

Features

• Enable fast, simple and cost-effective installation
• Made of SUS 304
• Highly corrosion resistant surface treatment
• Fasteners and rail nut configured fully, to save
installation time and purchasing extra parts

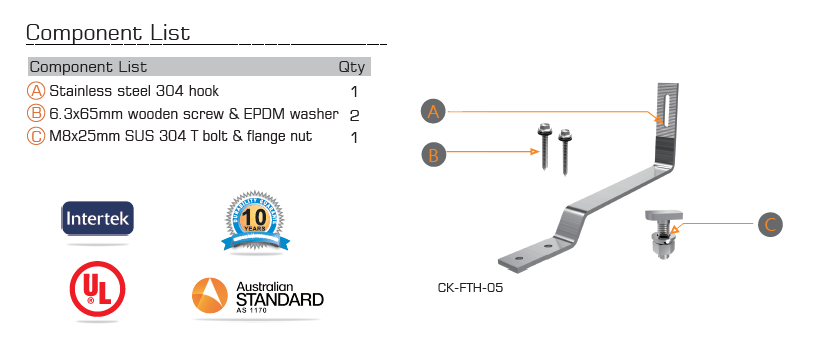

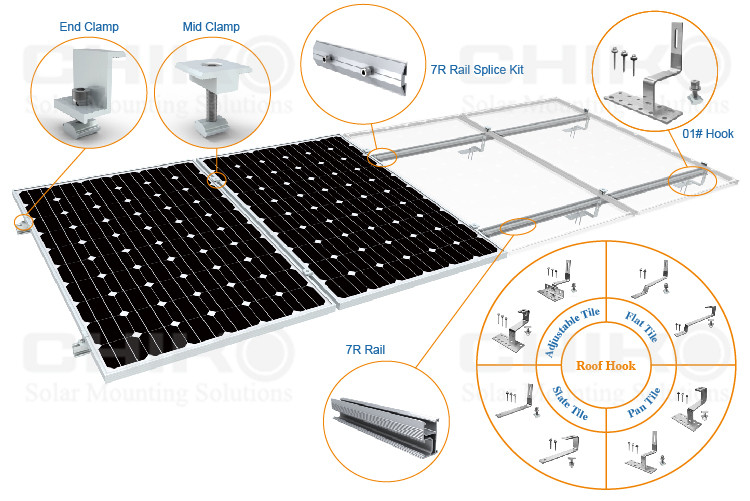

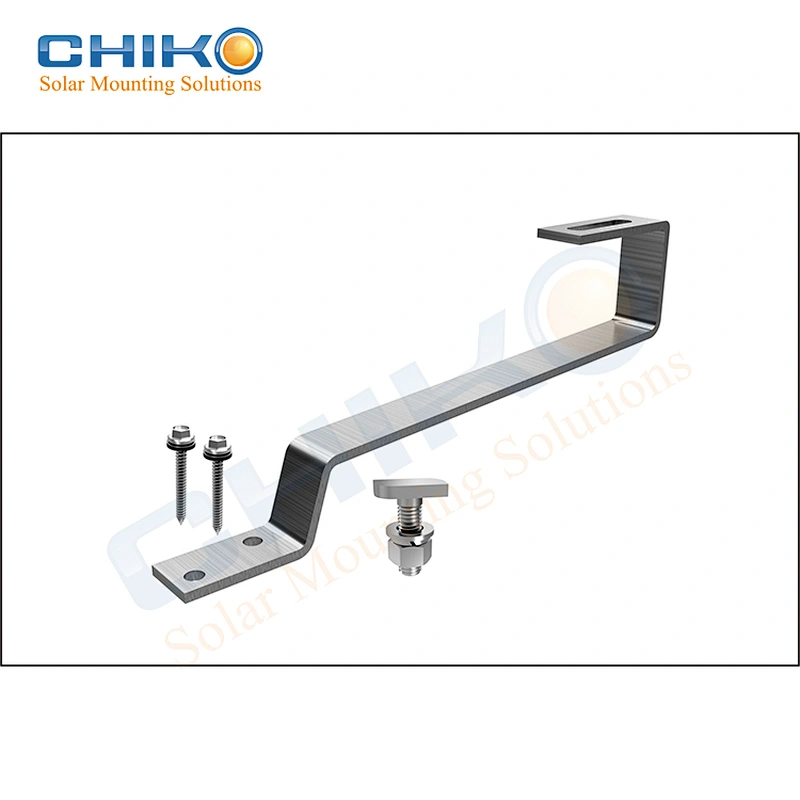

A. Component kits List

20180824 7#-01[1] (2)

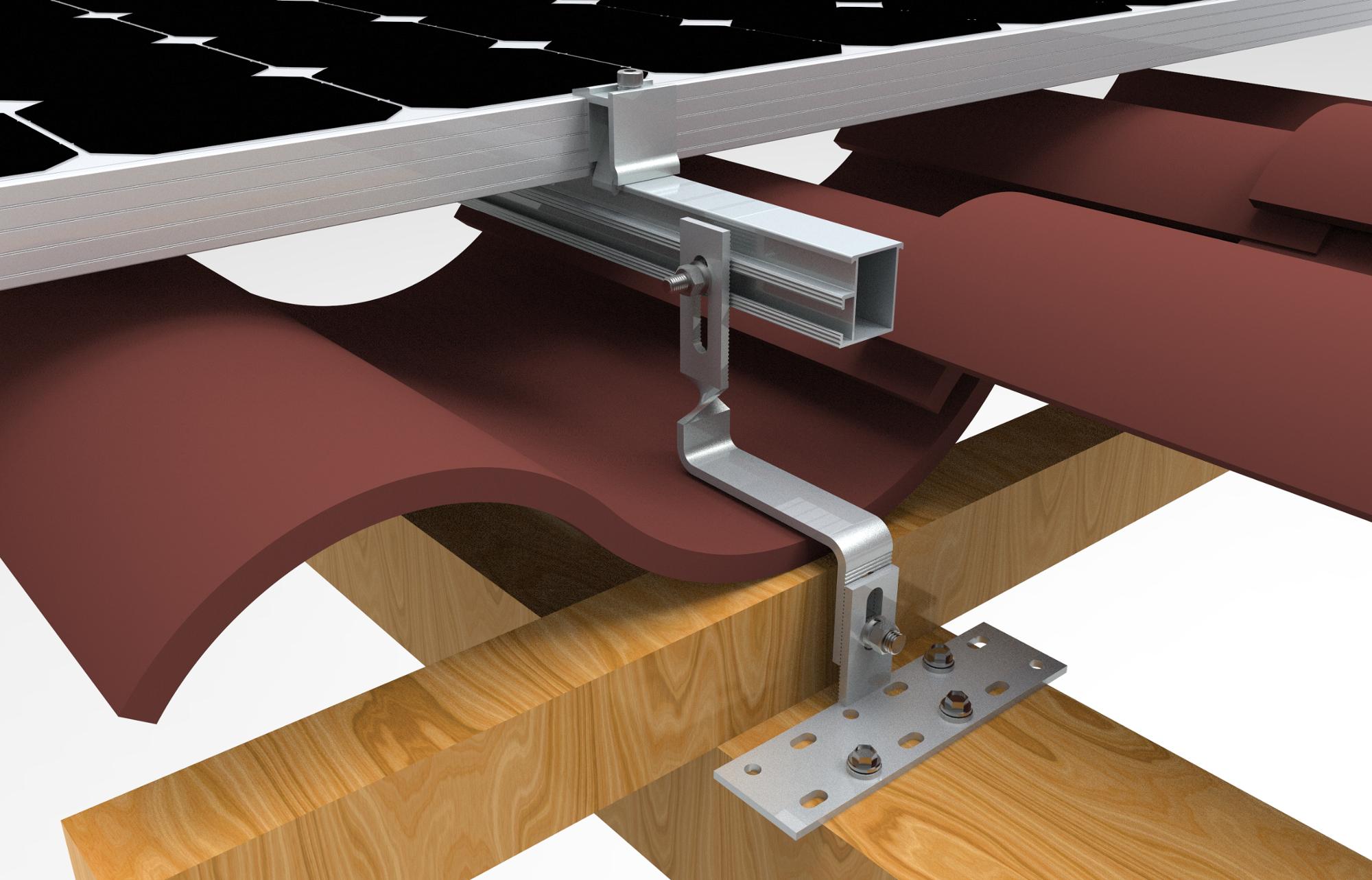

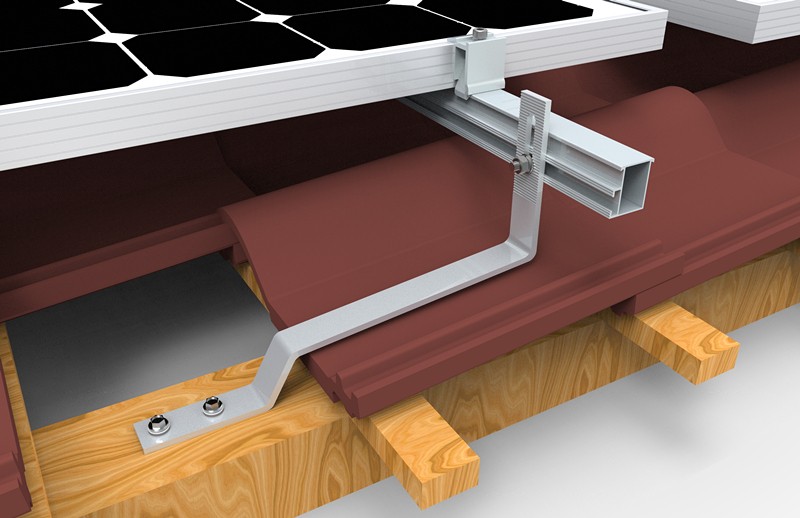

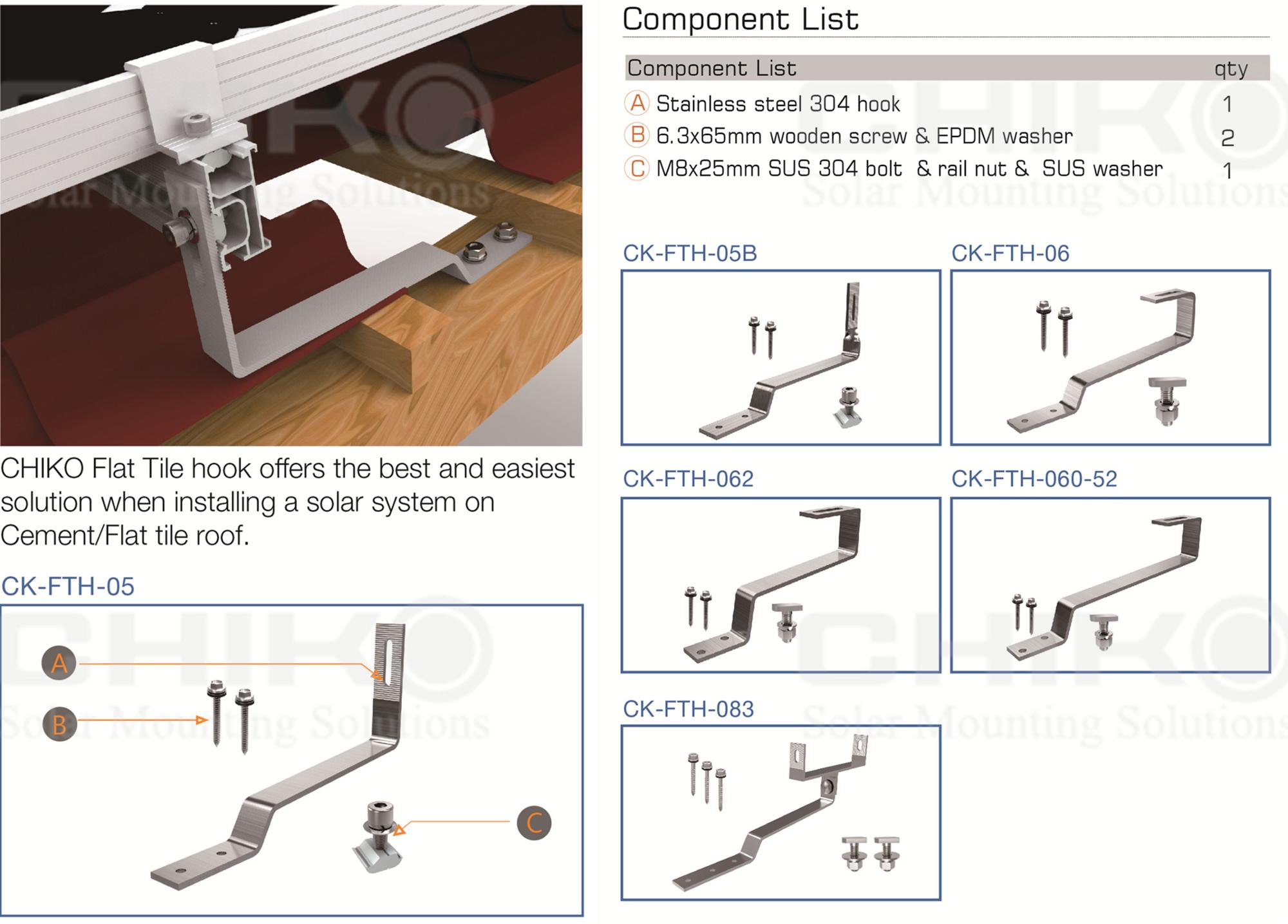

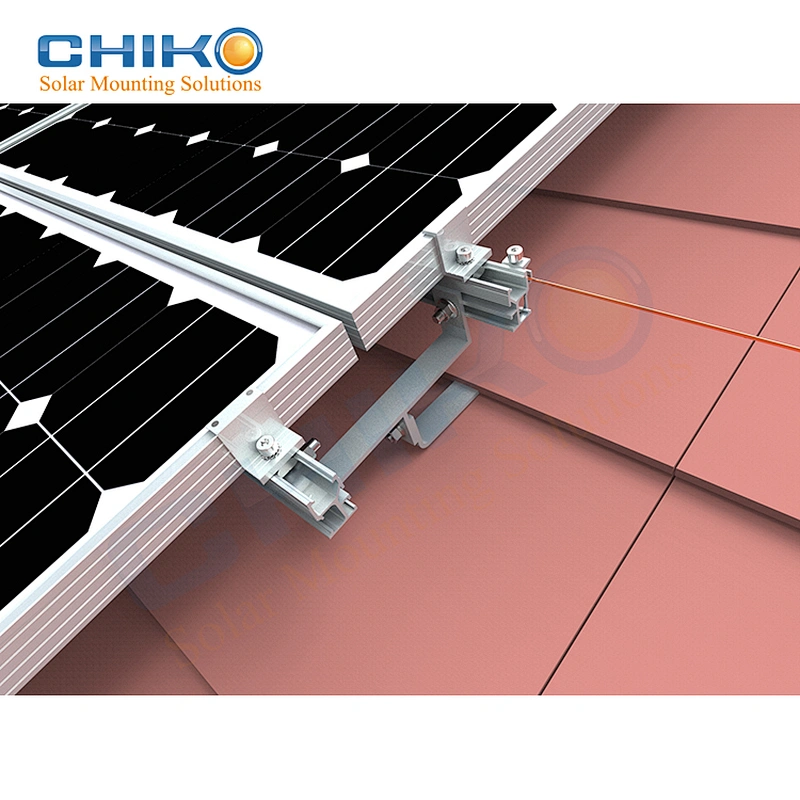

B. CHIKO Roof hook series for flat tile roof solar mounting

Flat tile_750 (2).jpg

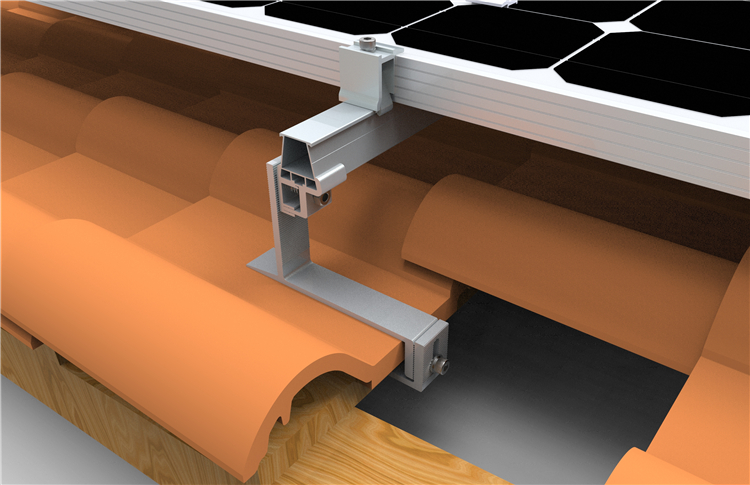

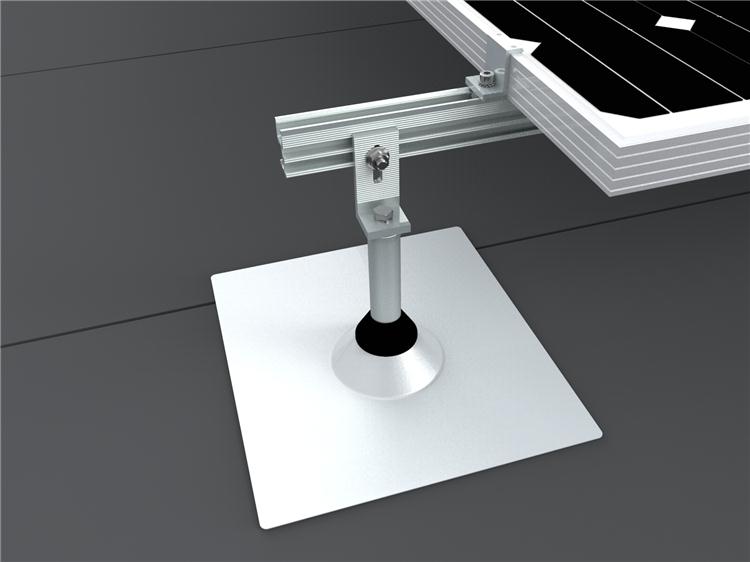

C. CHIKO More Tile Roof solar Mounting Solution

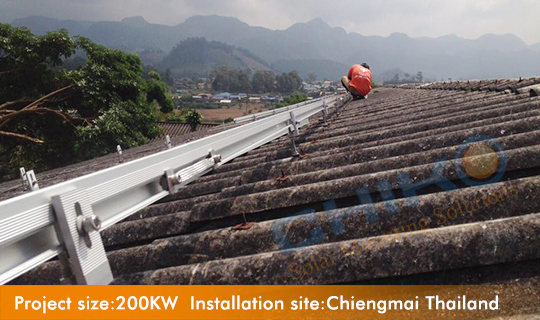

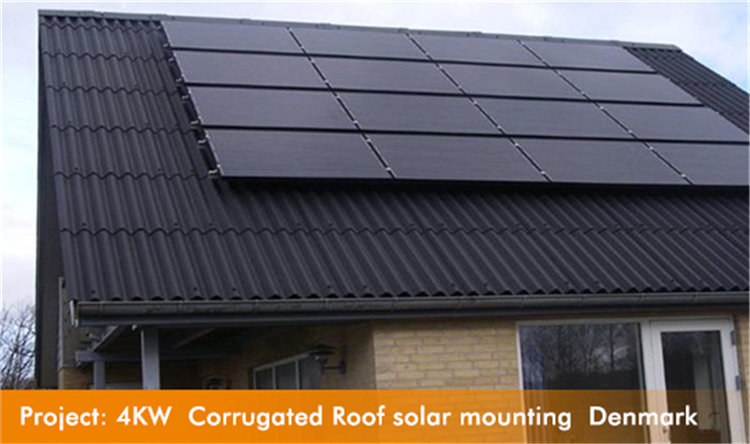

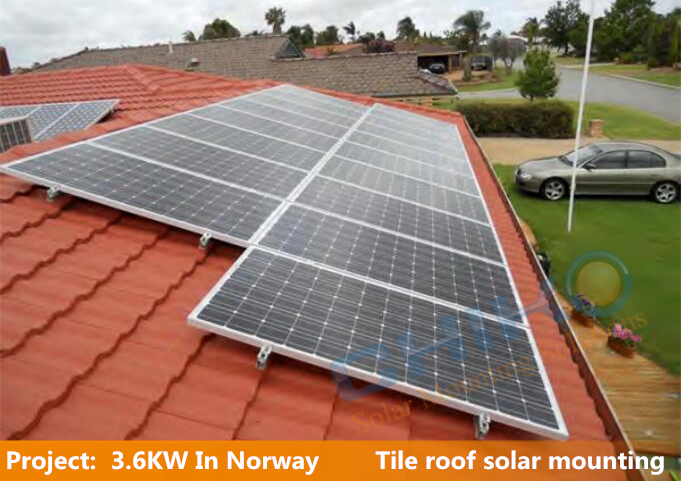

D. CHIKO Project

Our Service

1. CHIKO Service

For Solar Mounting Solution and Request Contact Info:
Terry Lynn
Email: chiko(@)chikolar.com
Phone:0086 13816459677

Please provide commercial solar panel bracket as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
