- Materials:SUS304
- Category:Solar Tiles Roof
- Application:Tile roof with normal wind & snow
- Certificates:AS/NZS 1170
- Snow Load:1.4KN/m2
- Building Height:Up to 20m
- Material:Aluminum Alloy
- Certificate:ISO9001:2008
- Warranty:10 Years
- Place of Origin:CN;SHG
- Brand Name:CHIKO
- Model Number:Roman tile-CK-FTH-016B
- Wind Load:60M/S
- Snow Load:1.8KN/M2
- Warranty:10 Years
Tile roof

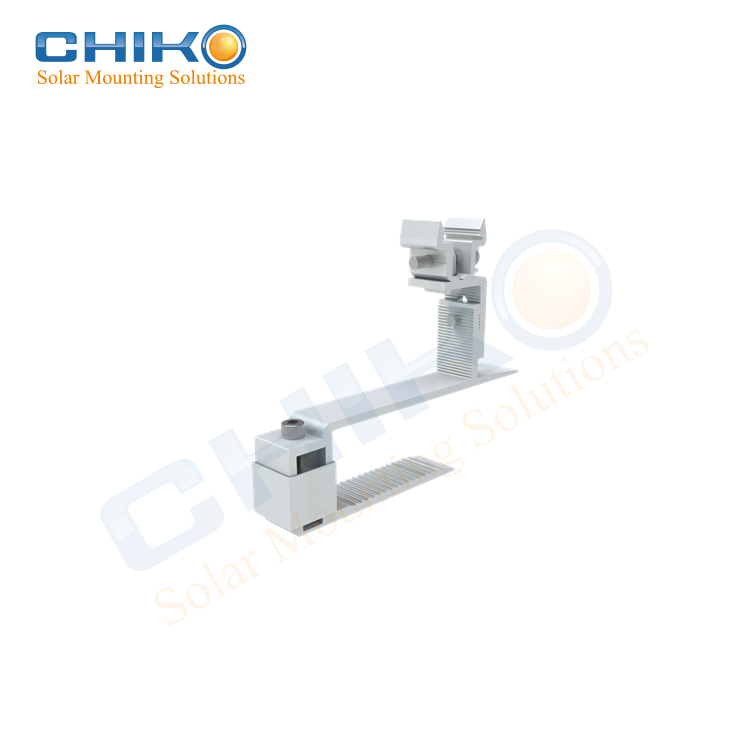

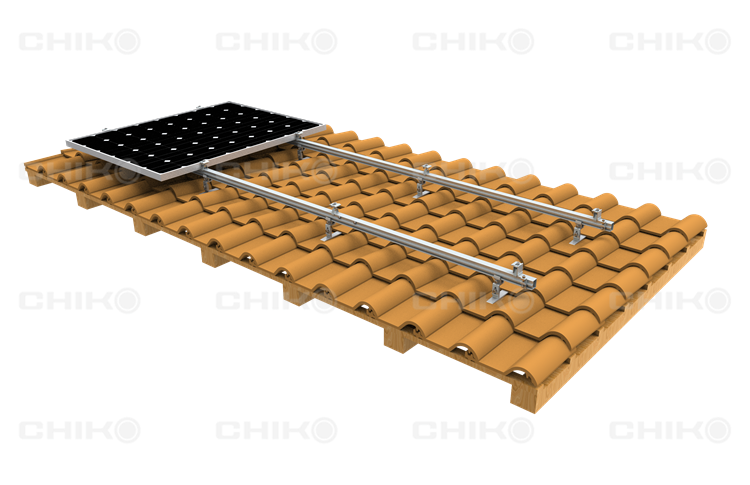

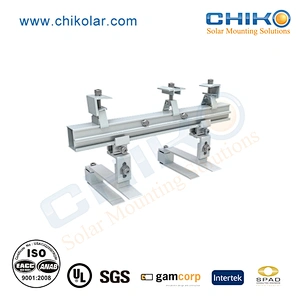

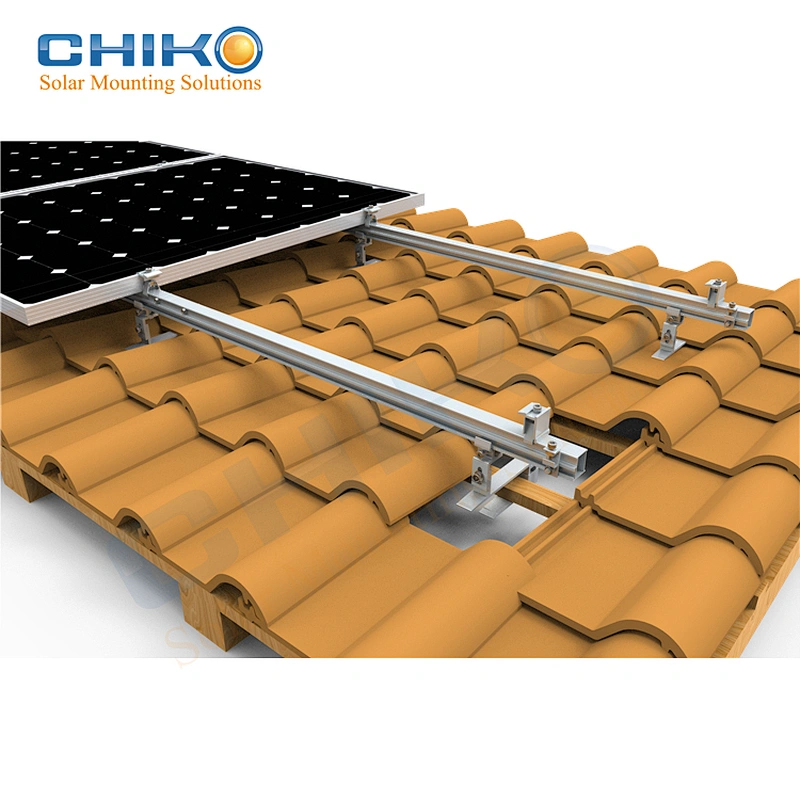

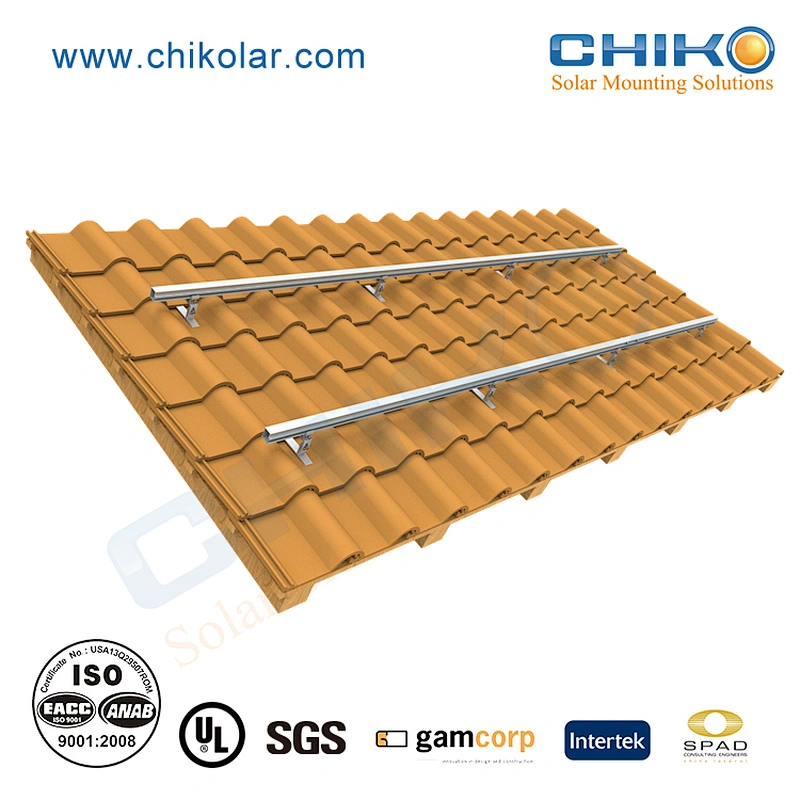

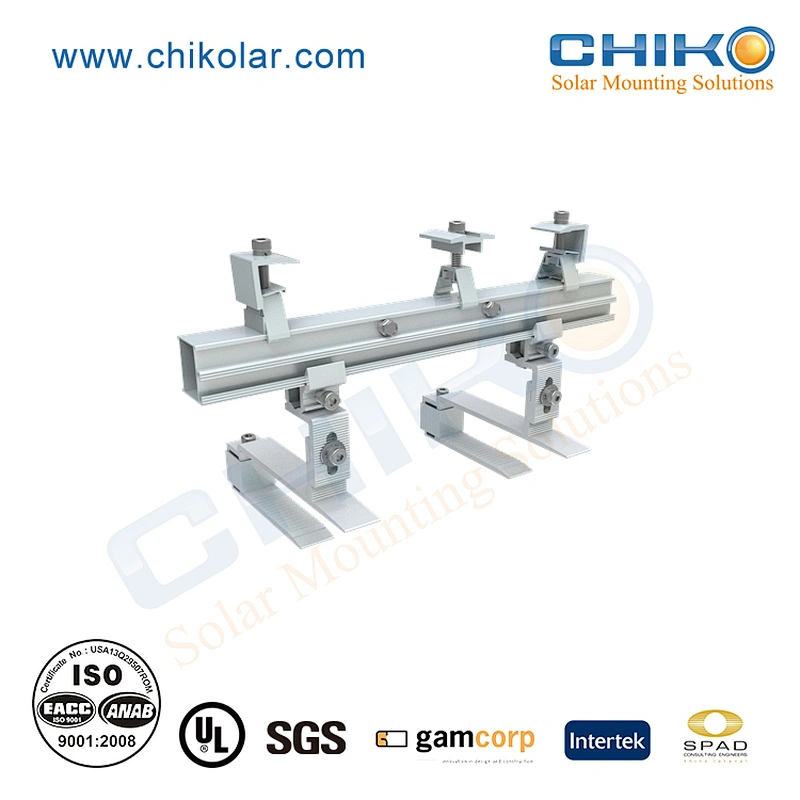

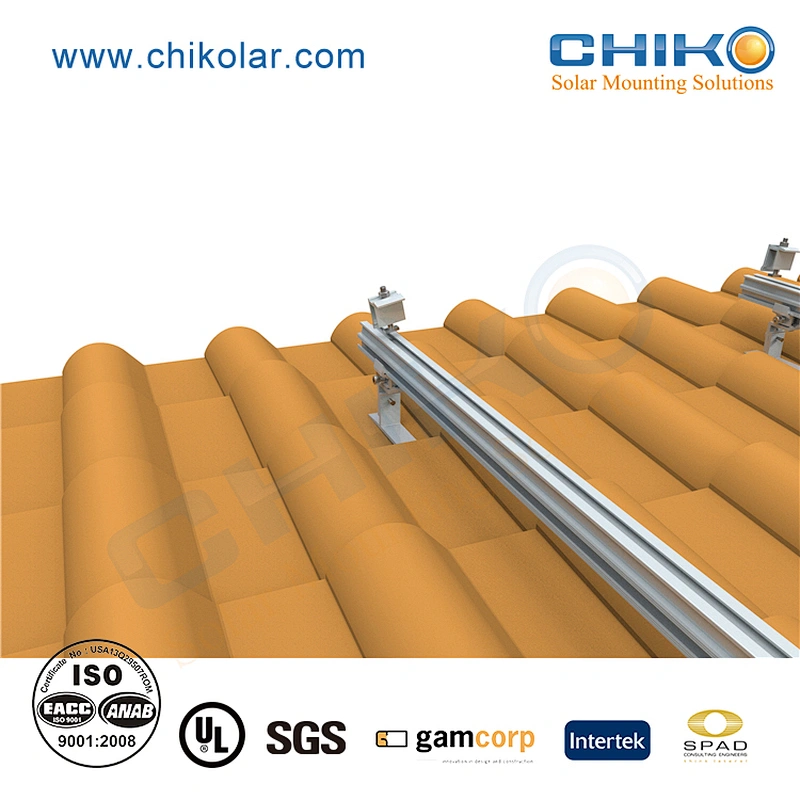

CHIKO Roman Tile Roof Crown Mount Solutions
The Crown Mout Sytem is designed for tile roof installation. This system consists Tulip hook, Crown adapter, Infit Rail and other accessories that guarantee a reliable installation. This system helps eliminate the problems associated with damaging tile batten during a solar install. Unique design brings extreme flexibility and fficiency
Features
• One tool installation
• Top fastening hook
• Tile batten damage eliminated
• Bottom carrying of rail achieved by side fastening
• Framed & frameless modules available
• Easily achieved Landscape & portrait layout
• Top fastening hook
• Tile batten damage eliminated
• Bottom carrying of rail achieved by side fastening
• Framed & frameless modules available
• Easily achieved Landscape & portrait layout

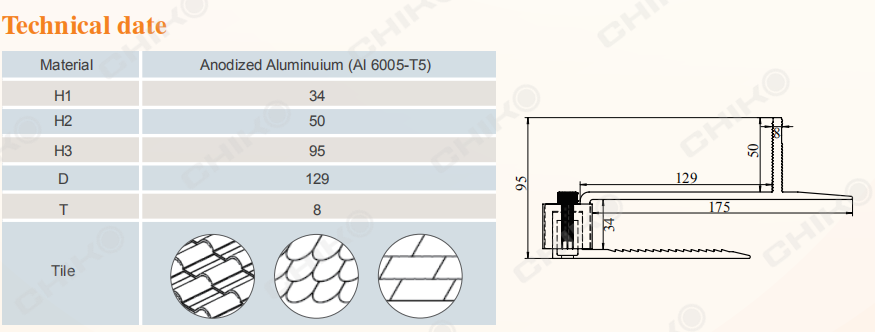

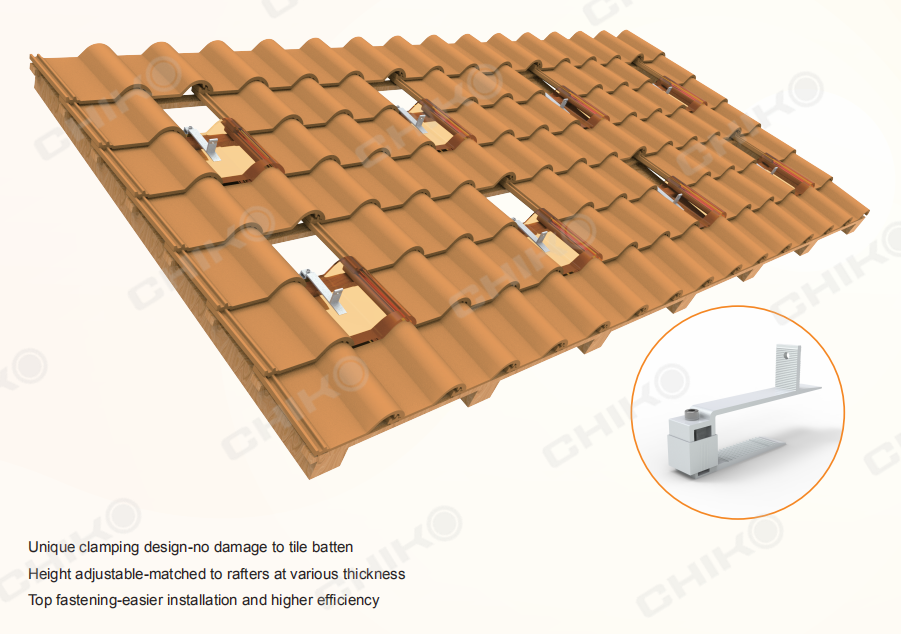

Tulip Hook
Unique clamping design-no damage to tile batten
Height adjustable-matched to rafters at various thickness
Top fastening-easier installation and higher efficiency
Height adjustable-matched to rafters at various thickness
Top fastening-easier installation and higher efficiency

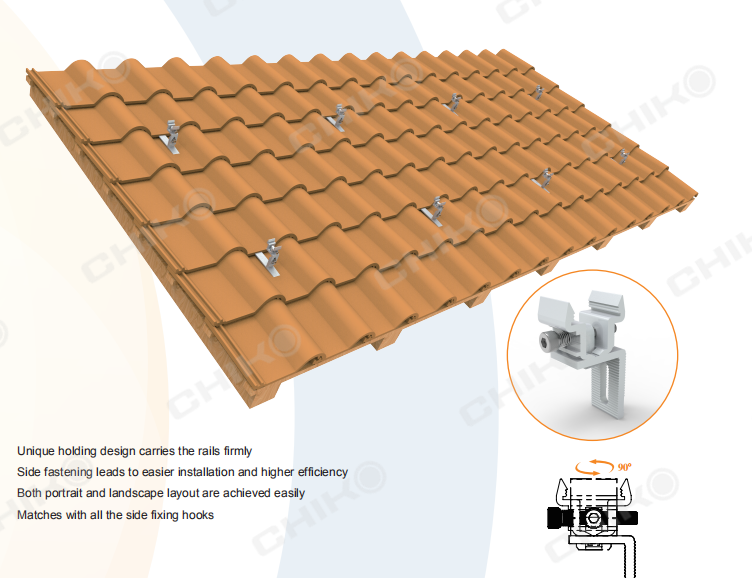

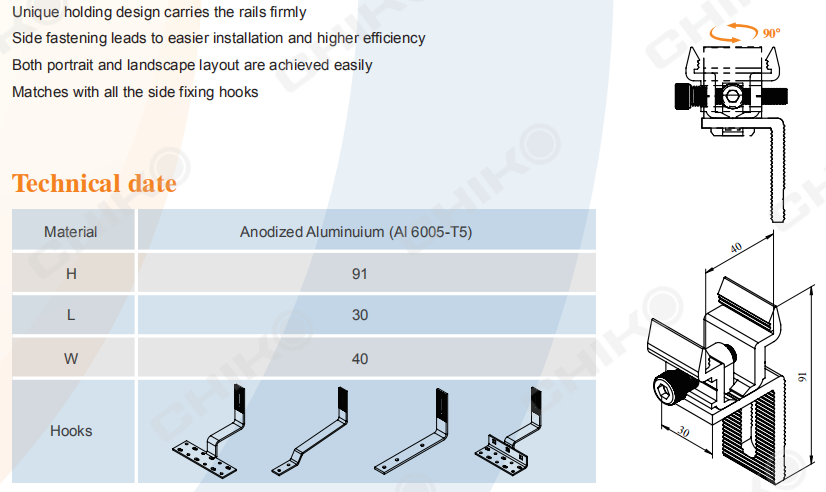

Crown Adapter
Unique holding design carries the rails firmly
Side fastening leads to easier installation and higher efficiency
Both portrait and landscape layout are achieved easily
Matches with all the side fixing hooks
Side fastening leads to easier installation and higher efficiency
Both portrait and landscape layout are achieved easily
Matches with all the side fixing hooks

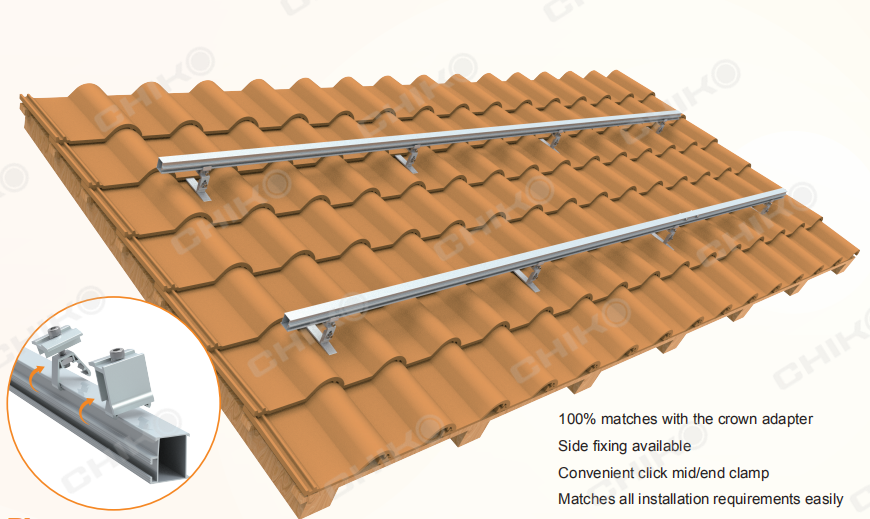

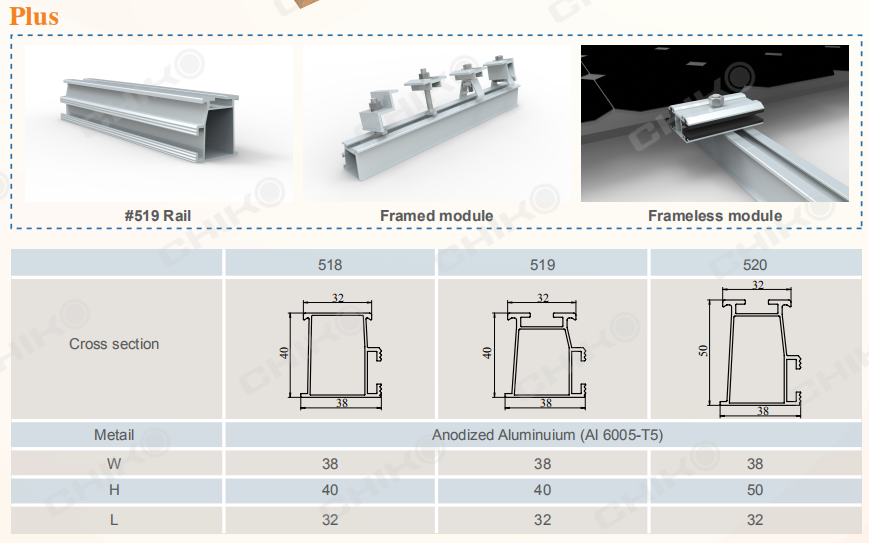

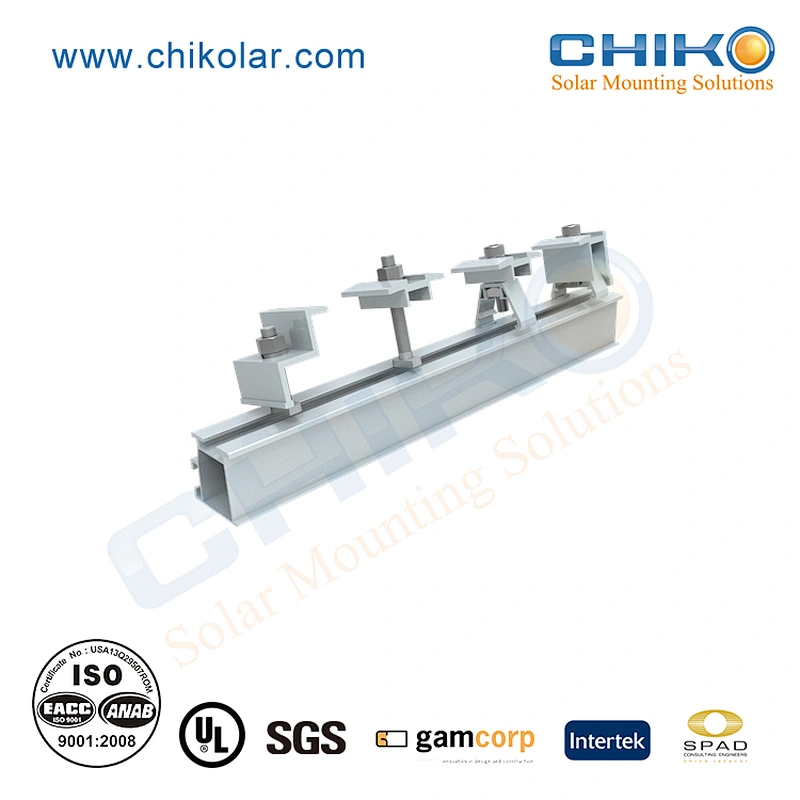

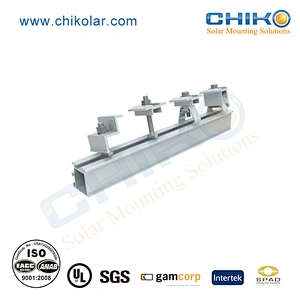

Infit Rails
100% matches with the crown adapter
Side fixing available
Convenient click mid/end clamp
Matches all installation requirements easily
Side fixing available
Convenient click mid/end clamp
Matches all installation requirements easily
Recommend Products

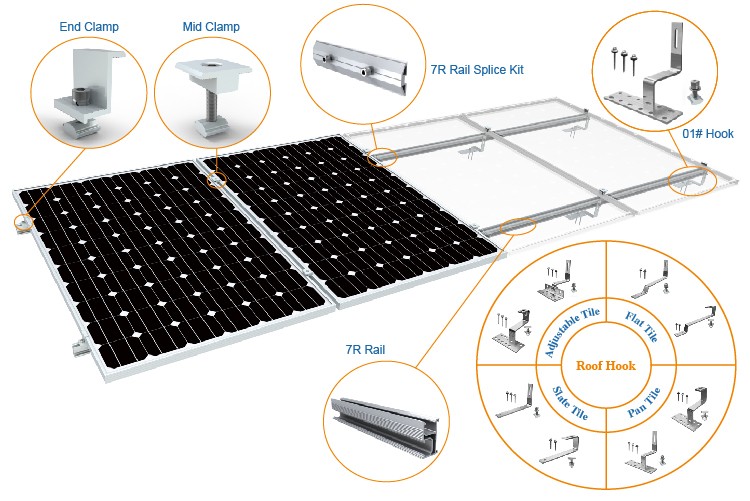

CHIKO Tile Roof Solar Mounting Solutions
⊙ Flexible system suitable for most pitched roof designs.
⊙Fixed Chiko hooks or adjustable Chiko hooks for all type of tiles.
⊙Complete range of stainless steel hooks and aluminum profiles.
⊙Compatible with all Chiko profiles
Our service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing
• Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
